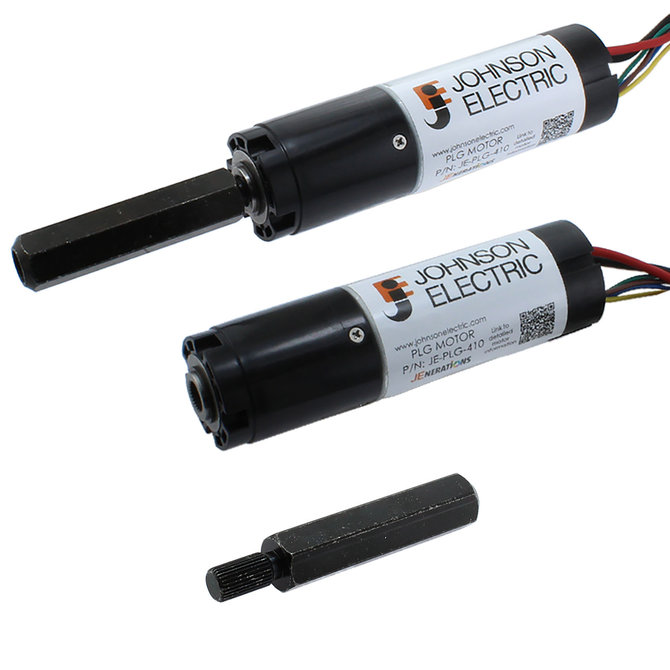

Johnson Electric PLG Gearmotor and Output Shaft

$6.00 – $45.00

Select option to view product code

This PLG (Power Lift Gate) motor is used in automotive applications to open and close the liftgate in SUV’s etc. In most applications, the motor drives a lead screw that provides translational moti...Read More

0 reviews

Write a Review

View Full Details

Product Overview

This PLG (Power Lift Gate) motor is used in automotive applications to open and close the liftgate in SUV’s etc. In most applications, the motor drives a lead screw that provides translational motion.

Motor Differences:There is a slight performance difference between the two motors, please see detailed specs below

  • am-4233 - Johnson Electric gearmotor with metal housing, 47 Watts JE-PLG-149

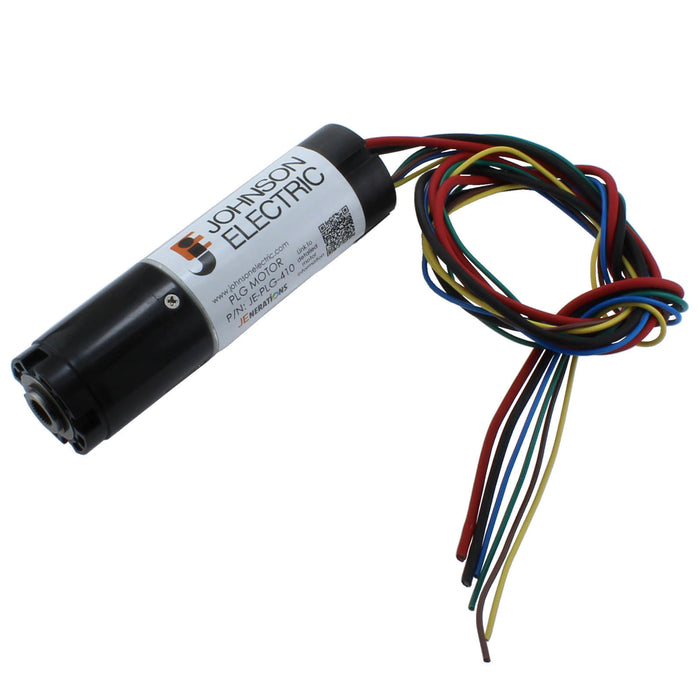

  • am-4233a - Johnson Electric gearmotor with plastic housing, 42 Watts JE-PLG-410

Shaft Differences:
Two shaft options to convert the motor output to a 0.5 in. Hex are available

  • am-4234 - Aluminum Shaft with square connector JE-PLG-ADPTR-1
  • am-4234a - Steel Shaft with Spline connector JE-PLG-ADPTR-2

The Aluminum Shaft version may have a tight fit with your 1/2" hex interface. Some manual prep may be required.

The motor has a dual hall encoder is included for speed and directional feedback. One rotation includes 44.4 hall pulses. This is an approved FRC legal motor, with technical information listed here.

Wiring Pinout (same for both motors):

  • Brown: Encoder 5V
  • Yellow: Hall Effect Encoder 1 Output
  • Green: Hall Effect Encoder 2 Output
  • Blue: Hall Effect Encoder Ground
  • Red: Motor 12V
  • Black: Motor Ground

Mounting:
A 3d Print to mount the motor is available here: https://a360.co/34Naa2s
Two prints are needed to be used as shown below:

Specifications

  • Free Current: 2A
  • Free Speed: am-4233=410 +/- 49 RPM, am-4233a=310 +/- 37.2 RPM
  • Gearbox Diameter: am-4233=1.1 in., am-4233a=1.16 in.
  • Gearbox Material: am-4233=metal, am-4233a=plastic
  • Hex Shaft Diameter: 0.5 in. Hex
  • Hex Shaft Length: 2.717 in. (69mm)
  • Length: 6.5 in. From Shaft to Encoder Cable Connector
  • Manufacturer Part Number: am-4233=JE-PLG-149, am-4233a=JE-PLG-410
  • Maximum Power: am-4233=47 Watts, am-4233a=42 Watts
  • Ratio: 22.2:1
  • Stall Current: 26A
  • Stall Torque: am-4233=3.2 +/- 0.4 ft-lbs, am-4233a=3.8 +/- 0.6 ft-lbs
  • Weight: am-4233=0.6lbs, am-4233a=0.44 lbs, am-4234=0.04 lbs, am-4234a=0.11 lbs
