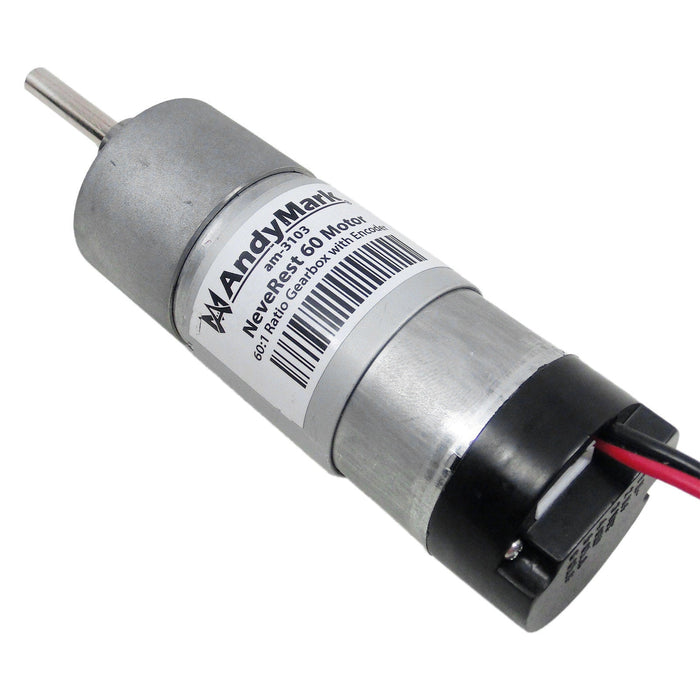

NeveRest Classic 60 Gearmotor

$33.00 – $34.00

Select option to view product code

The NeveRest 60 is a gearmotor with an attached encoder. The output shaft geometry and the gearbox housing diameter is similar to what FTC teams are familiar with. The shaft is a 6 mm D and the gea...Read More

View Full Details

Product Overview

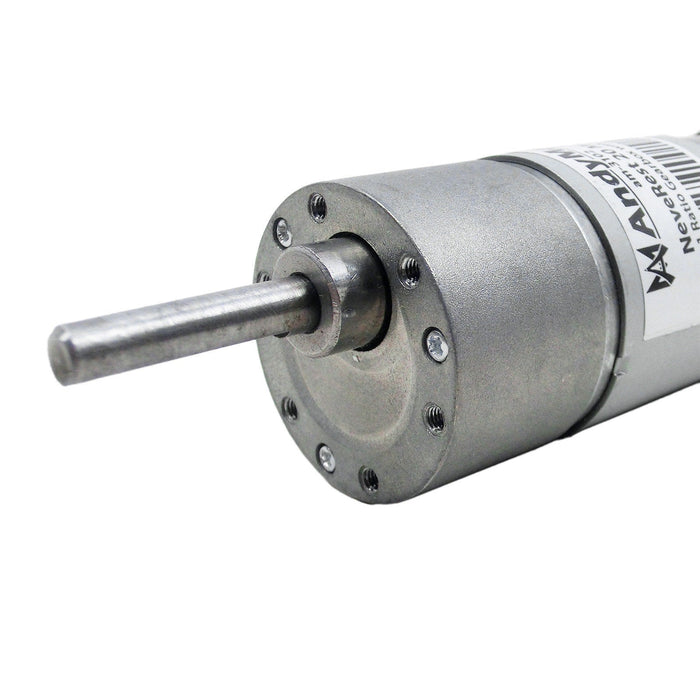

The NeveRest 60 is a gearmotor with an attached encoder. The output shaft geometry and the gearbox housing diameter is similar to what FTC teams are familiar with. The shaft is a 6 mm D and the gearbox housing is 37 mm diameter.

The power cable which feeds into the black encoder housing has two different options that are already crimped to the end of the cable. (select your needs above):

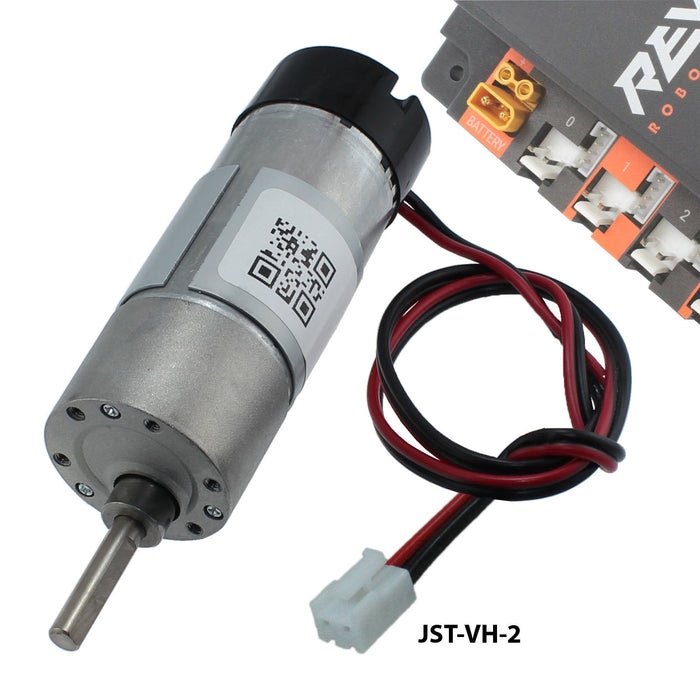

  1. NEW for 2020! JST-VH-2 connectors Option: this option plugs directly into the FIRST Tech Challenge REV Controller

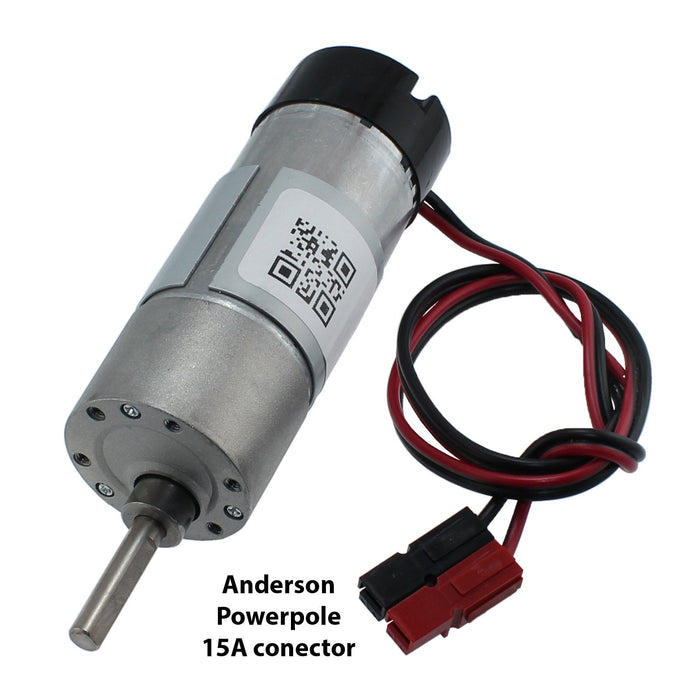

  2. Anderson Powerpole 15A connectors Option

FIRST Legality:

  • According to the FIRST Tech Challenge Game Manual Part 1, Rule RE10, this is legal for the 2020-2021 FTC Game.
  • According to the FIRST Robotics Challenge Game Manual, Rule R27, this is legal for the 2020-2021 FRC Game as it uses the NeveRest am-3104 motor.

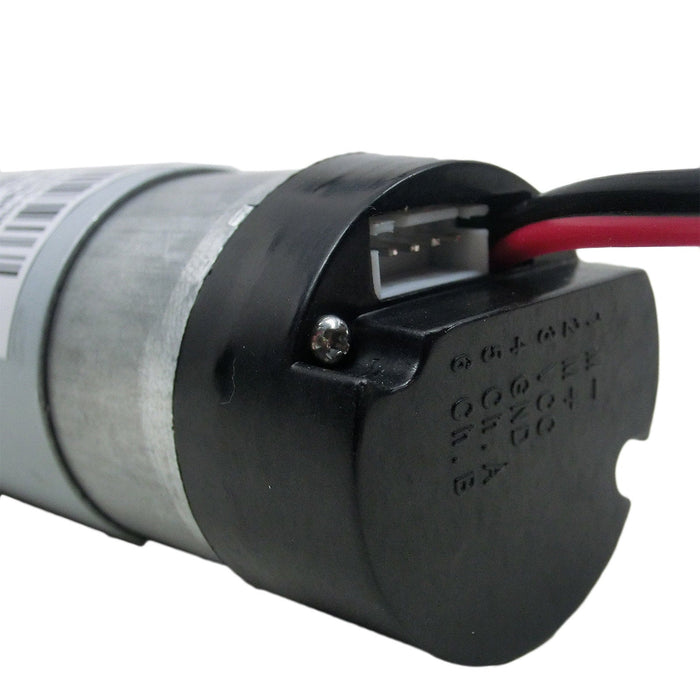

Encoder:
There is an encoder mounted to the backside of this motor. It is a 7 pulses per revolution (ppr), hall effect encoder. Since the motor's gearbox has a 60:1 reduction, then the NeverRest 60 output shaft provides 420 ppr.

Encoder Cable Options:
NeveRest motors do not come with an encoder cable as we offer 3 cable options:

am-3926a allows you to connect the encoder directly to the FIRST Tech Challenge REV Controller.
am-2992 has the 4 encoder pins joined in one housing using standard 0.1" spacing.
am-2993 allows you to break out the 4 pins separately if you need them in a different order.

Working with the Encoders: Performance Specs:
Time to Failure at Stall: 2 minutes, 54 seconds
Motor Case Temperature at Failure: 190 degrees F
If you need the output shaft to be a 1/2" Hex, check out the 6 mm D to 0.5 in. Hex-Shaft Adapter (am-3744a)

Specifications

  • Back Drive Force: 19.200 oz-in
  • Connector Type: JST-VH-2, Anderson Powerpoles
  • Free Current: 0.5 AMPs
  • Gauge: 18 AWG
  • Gear Material: Steel
  • Material: Steel with Plastic Encoder Housing
  • Maximum Diameter: 1.500 in. (38 mm)
  • Maximum Power: 14 Watts
  • No Load RPM: 105 RPM
  • Output Shaft Size: 0.240 in. (6 mm) D Shaft
  • Overall Length: 5.3 in.
  • Poles Per Magnet: 7
  • Ratio: 60:1
  • Shaft Hardness: 45-50 Rockwell C
  • Stall Current: 11.5 AMPs
  • Stall Torque: 525 oz-in
  • Ticks Per Revolution: 1680
  • Voltage: 12 Volts DC

Documents

Layout Print(s)
CAD File(s)
Don't see what you need?

Returns

Returns are not accepted for this product.
