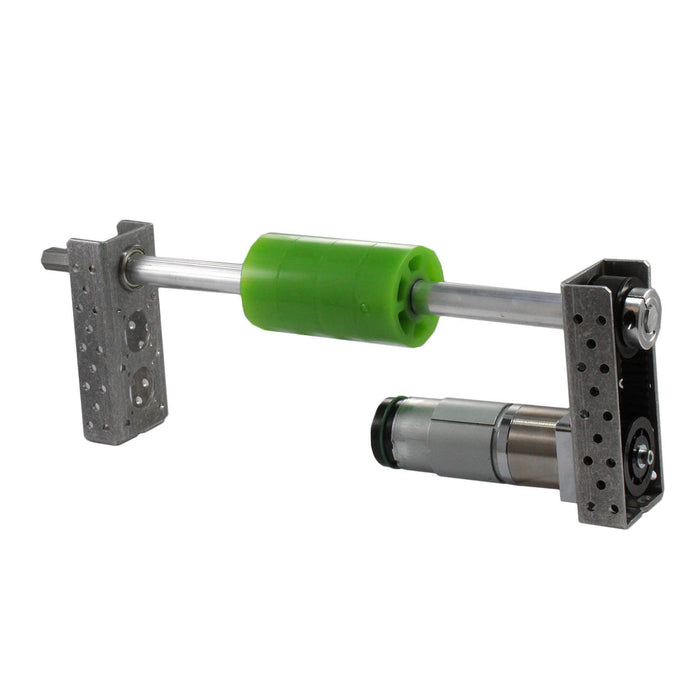

Intake System with Belt Drive
This intake system is a build your own intake system that can integrate with the AM14U Family (assembly required). We send extra spacers and these parts are packaged so you can cut, change and adju...Read More
0 reviews
Write a ReviewProduct Overview
This intake system is a build your own intake system that can integrate with the AM14U Family (assembly required). We send extra spacers and these parts are packaged so you can cut, change and adjust to make the intake for YOUR robot.
There is also a gear driven Intake System (am-3312a_gear) for a different configuration and intake speeds.
Included Parts
- Two - Intake Motor Mount Brackets, Rev2 (am-3311a)
- One - 1/2" hex Aluminum Spacer Stock, 3ft (Cut to length as needed to space wheels) (am-3896-3)
- Four - 2.25 inch HD Compliant Wheels, 35a Durometer, 500 Hex Bore (am-3949_green)
- One - Aluminum Hex Shaft Stock, 1/2" width, 7075, 3ft (Cut to length as needed) (am-2291-3)
- Two - 24T HTD Pulley with 1/2" Hex Bore (am-3404)
- One - HTD Timing Belt (am-3925)
- One - PG27 Gearmotor with 1/2 Hex Output (am-3654)
- Various Hardware and Molded Spacers
Specifications
- Product Lifecycle: replaced by <a href="https://www.andymark.com/products/roller-intake-system-kit?Option=am-3312a">am-3312a</a>
Documents
Layout Print(s)
