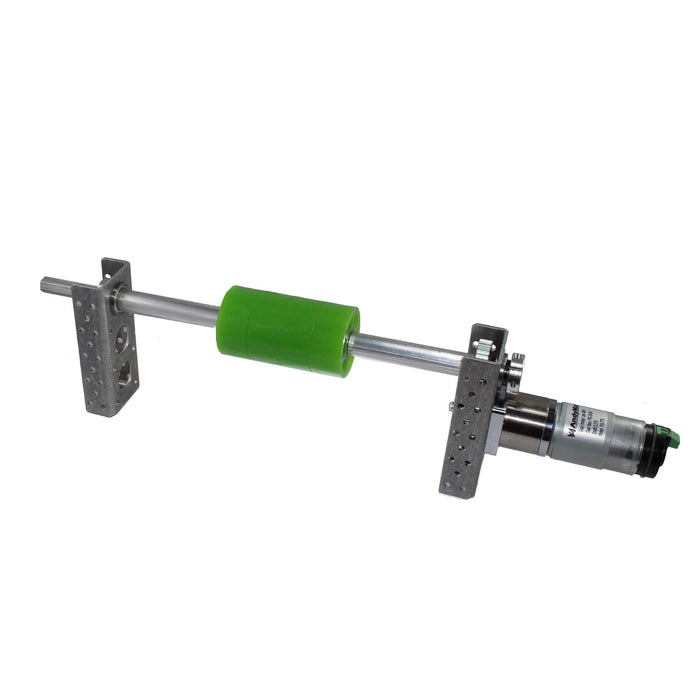

Intake System with Gear Drive
This intake system is a build your own intake system that can integrate with the AM14U Family (assembly required). We send extra spacers and these parts are packaged so you can cut, change and ...Read More
0 reviews
Write a ReviewProduct Overview
This intake system is a build your own intake system that can integrate with the AM14U Family (assembly required). We send extra spacers and these parts are packaged so you can cut, change and adjust to make the intake for YOUR robot.
There is also a belt driven Intake System (am-3312a_belt) for a different configuration and intake speeds, the belt also spaces the motor a bit farther from the intake axle.
Included Parts
- Two - Intake Motor Mount Brackets, Rev2 (am-3311a)
- One - 1/2" hex Aluminum Spacer Stock, 3ft (Cut to length as needed to space wheels) (am-3896-3)
- Four - 2.25 inch HD Compliant Wheels, 35a Durometer, 500 Hex Bore (am-3949_green)
- One - Aluminum Hex Shaft Stock, 1/2" width, 7075, 3ft (Cut to length as needed) (am-2291-3)
- Two - 32T 20dp 500H Bore Gears (am-3815)
-
One - PG27 Gearmotor with 1/2 Hex Output (am-3654)
- Various Hardware and Molded Spacers
Specifications
- Product Lifecycle: replaced by <a href='/products/roller-intake-system-kit?Option=am-3312a'>am-3312a</a>
Documents
Layout Print(s)
