EVO Slim - 2 Stage 2 Motor 7.56:1 Ratio

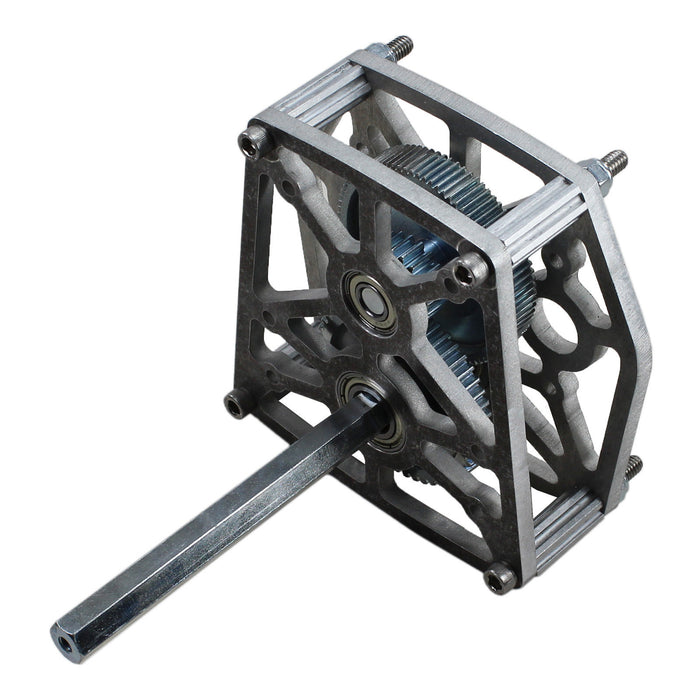

The AndyMark EVO Slim is a line of single-speed gearboxes, offering a high performance, lightweight solution to create robust drivetrains for competition robots. The EVO Slim line of gearboxes shar...Read More
0 reviewsWrite a Review
This configuration of the EVO Slim accepts up to 2 motors
This gearbox is shipped in kit form, not assembled. The EVO Slim ships with hardware to accept up to two CIM Motors (am-0255). Please note CIM motors are not included with these gearboxes.
Note about CIMs:
The EVO Shifter utilizes a 15 Tooth 32DP gear as the CIM gear which requires a press fit. Due to the intended interference fit (0.001 - 0.002") along the 0.750" long gear, a minimum 3 ton arbor press is required to install this gear onto the motor in conjunction with a provided aluminum spacer to help set the distance of which the pinion should be installed from the end of the motor shaft (approximately 0.40"). If you do not have access to this size arbor press, we have the option to add CIM motors to your order with the pinion gears pre-installed, available as am-0255_15T.
Gear Ratios Options:
|Part #||Overall Ratio||Input Gear||Large Cluster Gear||Small Cluster Gear||Large Output Gear||Price|
The EVO Slim for CIM accepts either the E4T Optical Encoder Kit or the SRX Mag Encoder. When using the SRX Mag Encoder, use the SRX Magnetic Encoder Mounting Hardware Kit.
- Input Stage Gear Type: 32DP, 20 degree pressure angle spur gears
- Material: 6061Aluminum
- Motor Input: CIM, NEO, Falcon
- Motor Quantity: 1, 2
- Output Shaft: 1/2 in. Hex, 4140 Steel
- Output Stage Gear Type: 20DP, 14.5 degree pressure angle spur gears
- Product Lifecycle: Other options available, <a href='/products/evo-slim?sku=am-3804_075'>see this product and other options here.</a>
- Weight: 1.78 Lbs
