E4T OEM Miniature Optical Encoder Kit
am-3132
$40.00
The E4T miniature optical encoder provides digital quadrature encoder feedback for high volume, limited space applications. The E4T is designed to be a drop in replacement for the E4P that offers h...Read More
Product Overview
The E4T miniature optical encoder provides digital quadrature encoder feedback for high volume, limited space applications. The E4T is designed to be a drop in replacement for the E4P that offers higher maximum speed and increased output drive.
Pin-Out:
Pin-Out:
- Pin 1: +5VDC
- Pin 2: A Channel
- Pin 3: Ground
- Pin 4: B Channel

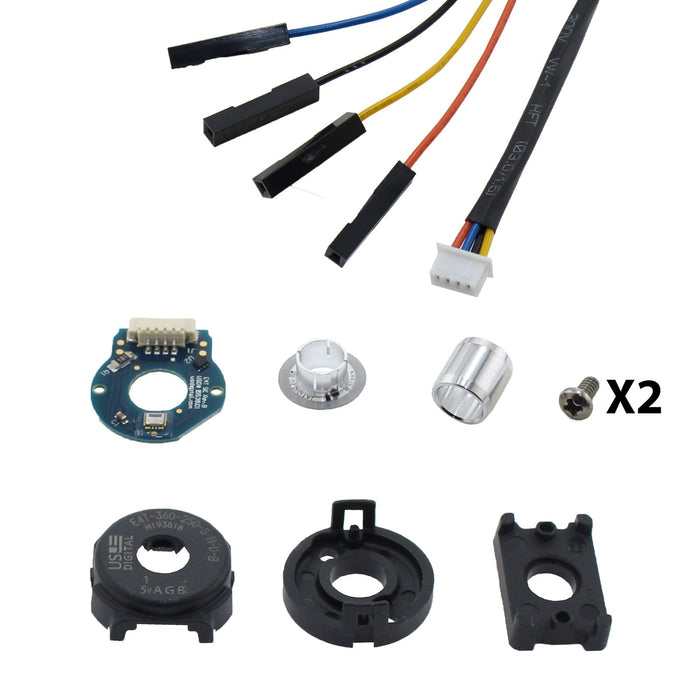

- One - Spacer Tool for US Digital E4T 360-250 Encoder
- One - E4T 360-250-S-H-D-B Encoder
- One - Encoder Cable, 3' long (am-2269)
- One - Centering Tool for E4T 360-250 Encoder
- Two - Philips Head Mounting Screws
Specifications
- Input Voltage: 5VDC
- Output: 360 CPR
