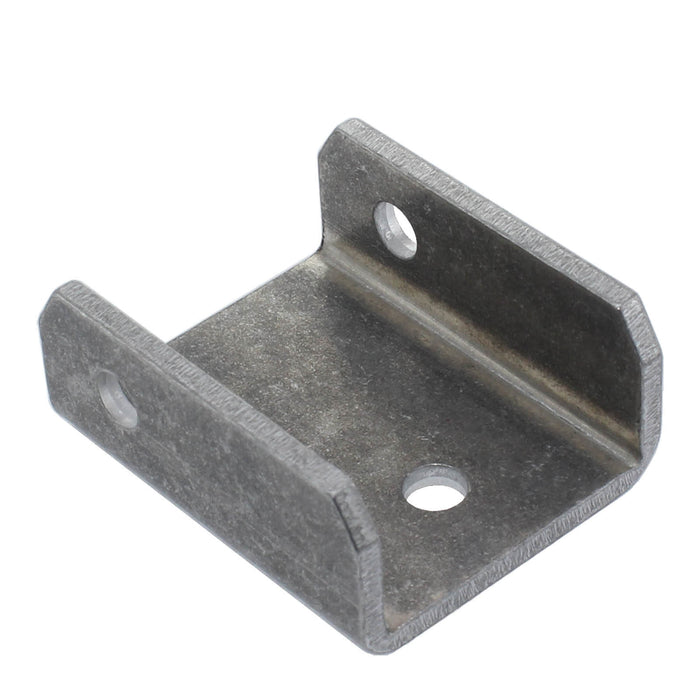

SKYSTONE℠ Foot Bracket

This aluminum bracket is used to anchor the feet of the Skybridge Supports to the Floor Plate, for the 2019-2020 FIRST Tech Challenge Game, SKYSTONE℠.

0 reviews

View Full Details

Product Overview

This aluminum bracket is used to anchor the feet of the Skybridge Supports to the Floor Plate, for the 2019-2020 FIRST Tech Challenge Game, SKYSTONE℠.

Specifications

Height: 0.875 in.
Hole Pattern: Qty 3 0.265 in. Holes one on each surface
Material: 5052 Aluminum
Product Lifecycle: discontinued
Thickness: 0.125 in.
Width: 1.6 - 1.7 in.

Documents

CAD File(s)

am-4046_Foot_Bracket.STEP

Layout Print(s)

am-4046 SKYBRIDGE Foot Bracket.PDF

Don't see what you need?

See_all_our_guides,_drawings_and_CAD_files_here

Returns

Returns are not accepted for this product.
