S3 Linear Motion Kit

am-4136

$39.00

The S3 Linear Motion Kit is designed to integrate perfectly with the S3 building system to allow you to make all manner of powered slides, elevators and lifts, or whatever sort of straight line, ba...Read More

View Full Details

Product Overview

The S3 Linear Motion Kit is designed to integrate perfectly with the S3 building system to allow you to make all manner of powered slides, elevators and lifts, or whatever sort of straight line, backy-forthy machine you can imagine! This kit can be used vertically, horizontally or at any angle in between. This easy to assemble kit attaches to S3 extrusions so that you can customize the length of each stage and carriage. The system was designed with the string in mind so that it can be efficiently routed for smooth, worry free operation. The aluminum brackets are light weight and strong to position the bearings at the right locations. These bearings act on the walls of an adjacent piece of S3 allowing you the freedom and flexibility of the S3 building system at every stage of your linear motion machine. The kit contains enough parts to assemble 2 bearing assemblies. You'll need to add pairs of bearing assemblies depending on the number of stages you're looking to build.

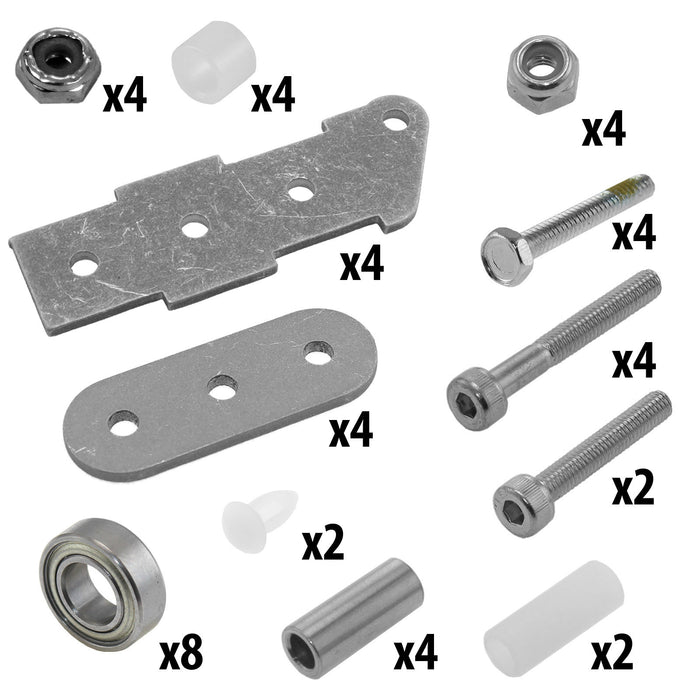

Individual Components within Kit:

  • 4 - Linear Motion - Main Plate (am-3968)
  • 4 - Linear Motion - Bearing Holder (am-3971)
  • 8 - Bearing 6x12x4mm (am-4149)
  • 2 - Push in rivet (am-1504)
  • 4 - 6-32 x 1.000" Hex Head Thread Lock Screws (am-1565)
  • 4 - 6-32 Lock Nut (am-1419)
  • 2 - 6mmOD x 4mmID x 16mmL Nylon Spacer (am-1529)
  • 4 - 6mmOD x 4mmID x 16mmL Aluminum Spacer (am-1530)
  • 4 - 6mmOD x 4mmID x 5mmL Nylon Spacer (am-1531)
  • 2 - M4-0.7 x 25mm Socket Head Cap Screw (am-1532)
  • 4 - M4-0.7 x 30mm Socket Head Cap Screw (am-1533)
  • 6 - M4-0.7 Lock Nut (am-1435)
