REV Robotics Proto Board

This product is currently unavailable for purchase.

The REV Robotics Proto Board is a passive expansion board designed for the roboRIO MXP (myRIO Expansion Port). Custom circuits can be prototyped and added to the roboRIO with this breadboard-style...Read More

View Full Details

Product Overview

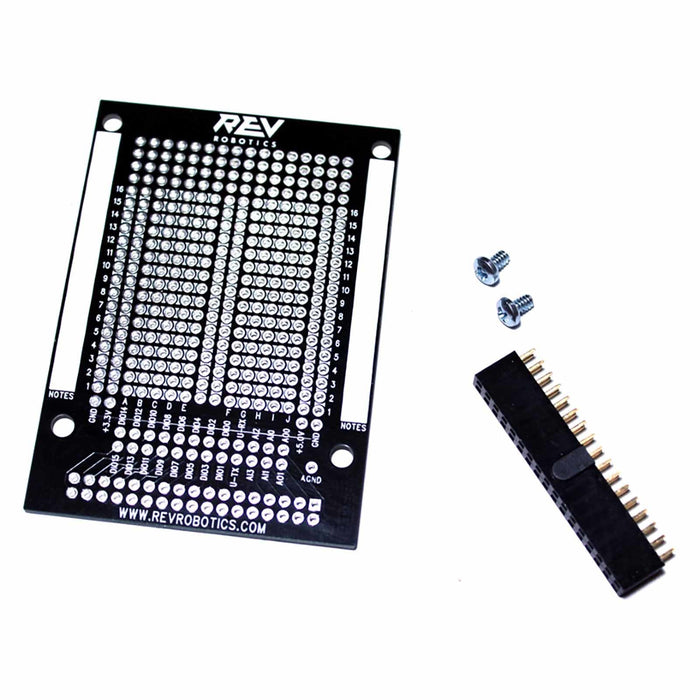

The REV Robotics Proto Board is a passive expansion board designed for the roboRIO MXP (myRIO Expansion Port). Custom circuits can be prototyped and added to the roboRIO with this breadboard-style board. Every MXP signal is broken out close to the prototype area allowing for short and neat wiring. Plated-through holes make the Proto Board much more durable than standard copper clad perforated boards. More information can be found at https://www.revrobotics.com/proto-board/.

Features
  • Access to all MXP signals
  • Double-sided PCB
  • All plated-through holes 0.1" grid hole pattern
  • 16 x 16 breadboard-style area with bus strips
  • 4 x 16 area with isolated holes

Included Hardware
  • 2 4-40 x 3/16" roboRIO mounting screws
  • 1 34-pin MXP connector Dimensions:

Specifications

  • Product Lifecycle: discontinued

Documents

Don't see what you need?

Returns

Returns are not accepted for this product.
