PicoBox Servo Motor Plate

am-3899

$10.00

This is the motor side plate on the PicoBox Servo gearbox. This plate mounts the standard scale servo and sets the gear spacing for the gearbox. The full setup can be used as am-3906 or use this pl...Read More

0 reviews

Write a Review

View Full Details

Product Overview

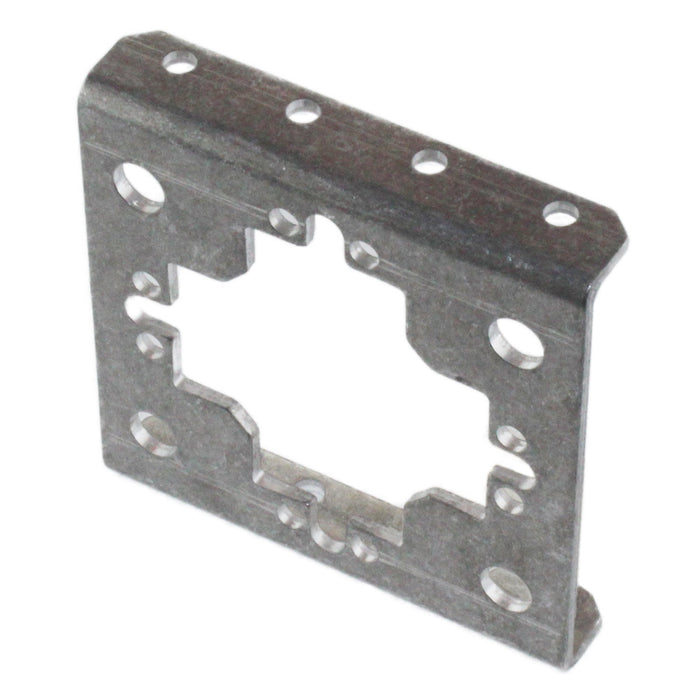

This is the motor side plate on the PicoBox Servo gearbox. This plate mounts the standard scale servo and sets the gear spacing for the gearbox. The full setup can be used as am-3906 or use this plate on its own for your custom gearbox needs.

Compatible Servos:
This gearbox does not include a servo, so you can install the right one for your application. We have tested and confirmed it works great with am-2587, am-2586, am-0010, and am-2543.
Other servos may work as well if they feature a 24 Tooth C1 Spline and fit inside the servo body cavity of the servo plate. The servo cavity is 1.6 inches tall by 0.8 inches wide.

Specifications

  • Material: 5052 Aluminum
  • Overall Depth: 0.50 in.
  • Overall Height: 2.52 in.
  • Overall Length: 3.78 in.
  • Weight: 0.087 lbs

Returns

Returns are accepted within 30 days of purchase.
View our return policy here.
