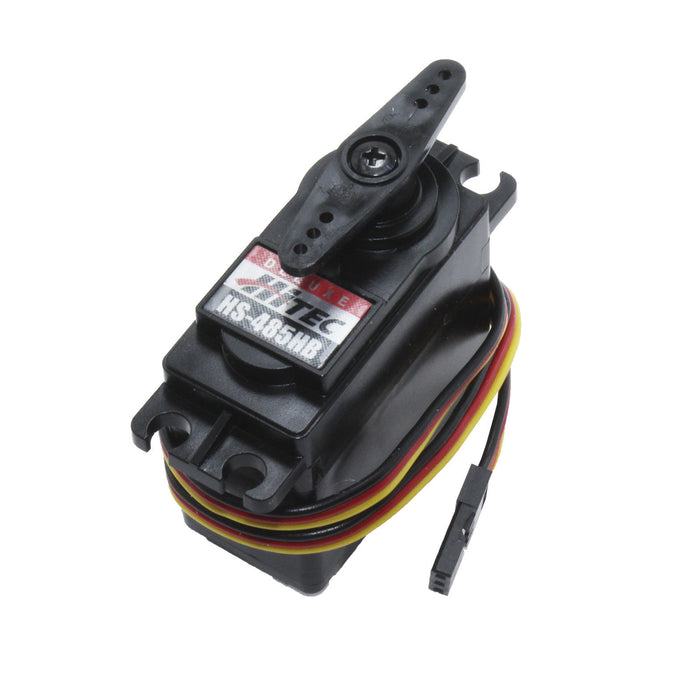

Hi-Tec Servo Model HS-485HB

am-2543

$23.00

Manufactured by Hi-Tec RCD USA HS-485HB updates the very popular HS-475HB by adding more torque and greater speed. With a top ball bearing, heavy duty, high impact Karbonite™ gears and high per...Read More

Product Overview

Manufactured by Hi-Tec RCD USA

HS-485HB updates the very popular HS-475HB by adding more torque and greater speed. With a top ball bearing, heavy duty, high impact Karbonite™ gears and high performance circuitry, the HS-485HB offers lots of torque and features excellent centering and resolution.

Specifications

  • 360 Modifiable: Yes
  • Connector Wire Length: 11.81" (300mm)
  • Input Pulse Range: +Pulse Width Control 1500usec Neutral
  • Maximum Rotation: 90 degrees
  • Maximum Speed: 0.18 sec for 60 degrees
  • Maximum Torque: 83.3 oz-in
  • Operating Angle: 45 Deg. one side pulse traveling 400usec
  • Operating Speed: 0.22sec/60 at no load,0.18sec/60 at no load
  • Operating Voltage: 4.8-6.0 Volts
  • Required Pulse: 3-5 Volt Peak to Peak Square Wave
  • Size: 1.57" x 0.79"x 1.44" (40 x 20 x 36.5mm)
  • Spline Profile: 24T (C1 Standard)
  • Stall Torque: 66.6 oz-in (4.8 kg-cm),83.3 oz-in (6.0 kg-cm)
  • Temperature: -20 to +60 Degree C
  • Weight: 1.59oz (45g)

Recommendations

5 reviews

  1. star star star star star 5.0 out of 5 stars

    very good

    we have replaced the 422 with the 485 HB in most cases. the heavier construction make this servo much more reliable in most real world situations, as it is hard to isolate the servo from any unwanted loads.

  2. star star star star empty_star 4.0 out of 5 stars

    Review

    4 Stars

  3. star star star star star 5.0 out of 5 stars

    hs-485hb servos

    very quick shipping. have used the servos before. good value

  4. star star star star star 5.0 out of 5 stars

    Perfect for. Our robot

    5 Stars

  5. star star star star star 5.0 out of 5 stars

    Review

    5 Stars
