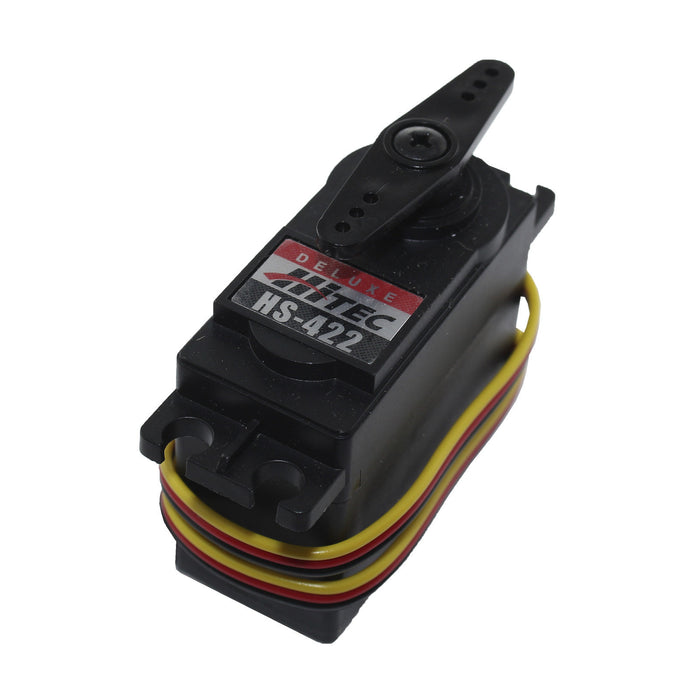

Hi-Tec Deluxe Standard Servo model HS-422

This product is currently unavailable for purchase.

Manufactured by Hi-Tec RCD USA

View Full Details

Product Overview

Manufactured by Hi-Tec RCD USA

Specifications

  • 360 Modifiable: Yes
  • Connector Wire Length: 11.81 in. (300mm)
  • Input Pulse Range: 1.0ms - 1.5ms - 2.0ms
  • Manufacturer: Hi-Tec RCD USA
  • Manufacturer Part #: HS-422
  • Maximum Rotation: 90 degrees
  • Maximum Speed: 0.15 sec for 60 degrees
  • Maximum Torque: 51 oz-in
  • Operating Angle: 40 Deg. each side
  • Operating Speed: 0.19sec/60 at no load, 0.15sec/60 at no load
  • Operating Voltage: 4.8-6.0 Volts
  • Product Lifecycle: discontinued, <a href='/categories/servos'>check out our servo options</a>
  • Required Pulse: 3-5 Volt Peak to Peak Square Wave
  • Size: 1.57 in. x 0.79 in. x 1.44 in. (40mm x 20mm x 36.5mm)
  • Spline Profile: 24T (C1 Standard)
  • Stall Torque: 42 oz-in (3.0 kg-cm), 51 oz-in (3.7 kg-cm)
  • Temperature: -20 to +60 Degree C
  • Weight: 1.52oz (43g)

Documents

Don't see what you need?

Returns

Returns are not accepted for this product.

Recommendations

7 reviews

  1. star star star star empty_star 4 out of 5 stars

    Basic servo, but works

    We use these servos for very light loads. the plastic servo horn and gears

    KL from Greenwood

  2. star star star empty_star empty_star 3 out of 5 stars

    HS-422 servo

    Like the price, easy to use.

    JS from El Segundo

  3. star star star star star 5 out of 5 stars

    Review

    5 Stars

    KH from Albion

  4. star star star star star 5 out of 5 stars

    Review

    5 Stars

    ST from Chapel Hill

  5. star star star star star 5 out of 5 stars

    Review

    5 Stars

    EF from Blythewood

  6. star star star star empty_star 4 out of 5 stars

    Hi-Tec Deluxe Standard Servo

    It looks delicate but we will see.

    BA from Brownsville

  7. star star star star star 5 out of 5 stars

    Hi-Tac Servo

    90 degree servo verses 180 degree

    MW from Tempe
