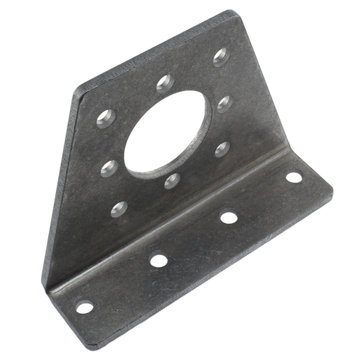

Bearing and Motor Mount Bracket 1in pitch
This simple bracket handles so many of your mounting needs! Mount motors or gearboxes anywhere and make axle supports with bearings - it's a do-it-all, put-it-anywhere bearing and motor mount brack...Read More
Product Overview
This simple bracket handles so many of your mounting needs! Mount motors or gearboxes anywhere and make axle supports with bearings - it's a do-it-all, put-it-anywhere bearing and motor mount bracket.
Any motor or gearbox with a 2-inch diameter bolt circle can be mounted in this bracket. The center hole is sized to hold a standard 1.125 inch outside diameter bearing.
Examples of motors with a 2 in. diameter bolt circle:
Examples of gearboxes with a 2 in. diameter bolt circle
Specifications
- Depth: 1 in.
- Height: 2.679 in.
- Length: 3.5 in.
- Material: 5052 Aluminum
- Product Lifecycle: replaced by <a href='/am-4244a'>am-4244a</a>
- Thickness: 0.13 in.
- Weight: 0.104 lbs
Documents
Layout Print(s)
CAD File(s)
Don't see what you need?
Returns
Returns are not accepted for this product.
Recommendations
1 review
-
Works Exactly as Expected
Our team used these to mount Versaplanetary Gearboxes. They work exactly as one would expect, and provide an excellent motor mount.
