This pre-assembled gearbox is used with AndyMark RedLine Motors to give more power than a CIM motor.

Description
Specifications
Documentation

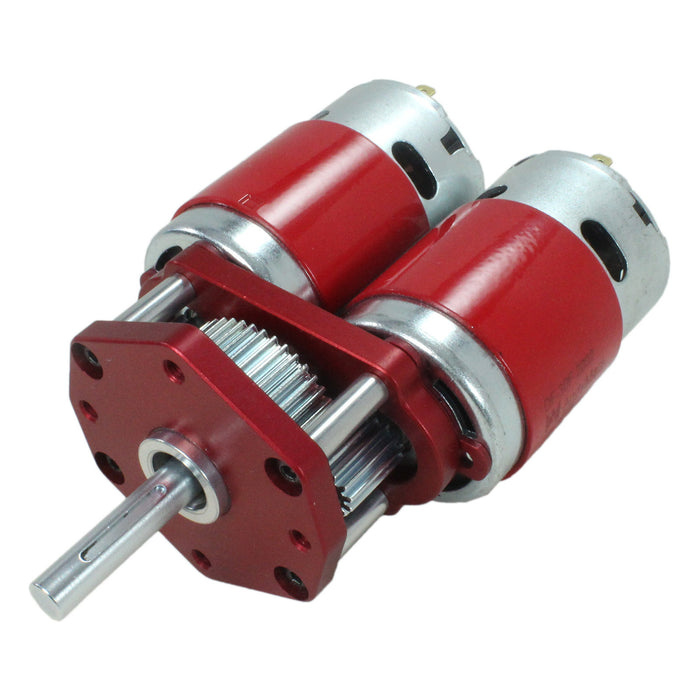

This gearbox comes with two AndyMark RedLine Motors (am-3775) to give you a total package of about the same output speed, size and weight of one CIM motor, but with almost 700 watts of power! Use this anywhere you would use a CIM with its identical output shaft and mounting geometry. Please note, this gearbox is louder than most due to the open case and and extremely fast spinning gears.

Possess your own 775 motors and want to save money? Only want to use one motor? This gearbox is available in a motor-less, unassembled version by the part number am-3745g.

Product Usage:
All AndyMark gearboxes require grease for proper operation and long life. We suggest using our Red Tacky Grease, am-2768. We also encourage that the user powers the gearbox continuously for 30 minutes without grease to allow the gear teeth to wear in. While we do design with short run times in mind, this 'run in' period for smooth gearbox operation, is recommended. For this gearbox some tape over the front vent holes of the motors during the run-in is recommended to prevent metal dust from getting inside the motor. Once this is completed, thoroughly grease the gear teeth periodically to ensure smooth operation.

*Specifications are theoretical with two AndyMark RedLine Motors installed.
- Motor Input: 775
- Motor Quantity: 1, 2
- Ratio: 3.75:1
- Weight: 2.1 lbs.
Guides
am-3745 DeCIMate Assembly Guide.pdf
Layout Prints
am-3745 DeCIMate Gearbox.PDF
STL Files
am-3745 DeCIMate case.STL
CAD Files
am-3745 DeCIMate.STEP
