AM14U3 Upgrade Kit 8WD with 6 in. HiGrip

Note:Please notice that this kit is NOT recommended for use with the AM14U4 2019 version of the Chassis. For AM14U4 we recommend this version of the kit: AM-14U4_8WD When you want to have a...Read More

0 reviews

Write a Review

View Full Details

Product Overview

Note:
Please notice that this kit is NOT recommended for use with the AM14U4 2019 version of the Chassis. For AM14U4 we recommend this version of the kit: AM-14U4_8WD

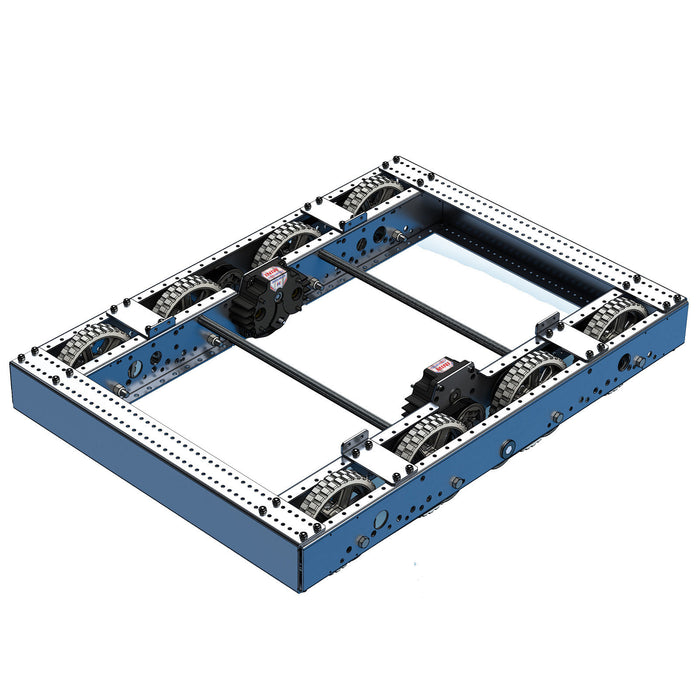

When you want to have an eight wheel drive instead of a six, this upgrade kit will transform your AM14U3 into 8 wheel drive using 2 additional 6" HiGrip Wheels.

With two dropped center wheels instead of one, it keeps you more consistent during shooting and provides slightly better turning performance. It also reduces the space between wheels, making it less likely to get caught on surfaces between them.

This product is sold as a KIT and does not include the AM14U3 Chassis, only the components needed to add the additional wheels and properly space the outside plates from the inside plates.

Check out the Downloads tab for a 3D PDF and CAD file.

Parts included:

Twelve - 250 Sprocket and Pulley Spacer (am-0207a) (Used to space each pulley off the wheels)
Eight - 3/8" id 1.125 od ball bearing (1614ZZ) (am-0209) (Used in each wheel)
Two - Long Hex Output shaft, 4140 steel Toughbox_d31 (am-0801) (Used as the live drive axle from the gearbox, not included)
Two - 6 inch HiGrip Wheel Rev2 (am-0940a) (two wheels to add to the six included in the AM14U3)
Two - 500EX Hex Hub (am-2568) (for the two additional wheels)
Four - Collar Clamp, 1/2" Hex Bore, Aluminum (am-1238) (Used to keep the pulleys on the drive axle from moving)
Four - 0.280" long, 0.518" od, 0.382" id, Spacer (am-1306) (Used to space wheels away from the chassis plates)
Eight - 0.25" x 0.382" x 0.625" Aluminum Spacer (am-3260) (Used to space wheels away from the chassis plates)
Eight - 3/8-16 x 4.75 Hex Bolt (am-1395) (Used as wheel axles)
Sixteen - Pulley, 42 Tooth (am-2234) (Additional pulley's for belt connections)
Four - Timing Belt, Gates HTD, 15mm wide, 117T, 585-5M-15 (am-2702) (Used to drive wheels)
Four - Timing Belt, Gates HTD, 15mm wide, 85T, 425-5M-15 (am-2703) (Used to drive wheels)
One - 500 Churro Tube, 24.25" Length (cut 4 pieces at 3.875" long for spacing the inside and outside plates from each other)
Four - 2x6 AM14U3 Bracket (am-3299) (Used to space the inside and outside plates from each other)
Hardware for assembly:
- Twenty Four - 10-32 Nylock Nut, Steel, Zinc Plated, [Qty-50] (am-1212)
- Four - 3/8-16 Nylock Nut (am-1054)
- Three - 10-24x1.25 Thread Forming Screw, Zinc [Qty-10] (am-1278)
- Four - 1125 x 629 x 128 Nylon washer (am-1358)
- Twenty Four - 10-32 x 1" BHCS (am-1396)
