Johnson Electric Gearmotor without Shaft

by AndyMark
$39.00 - $39.00
$39.00
$39.00
$39.00 - $39.00
$39.00

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and has been discontinued , see other options here.

This product is currently unavailable for purchase

SKU am-4233
  • Description
  • Specifications
  • Documentation

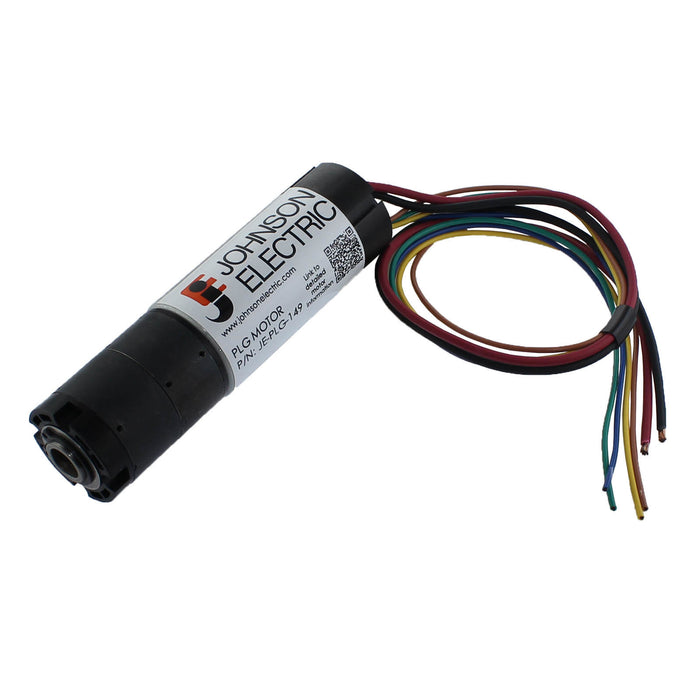

  • This PLG (Power Lift Gate) motor is used in automotive applications to open and close the liftgate in SUV’s etc. In most applications, the motor drives a lead screw that provides translational motion.


    This is simply the motor without shaft. The motor and shaft combo is available in the 2020 FRC FIRST Choice as part number fc-JE-5548 or bundled together as am-4230. The manufacturer part numbers are JE-PLG-149 and JE-PLG-ADPTR-1. A dual hall encoder is included for speed and directional feedback. One rotation includes 44.4 hall pulses. This is an approved FRC motor for the 2020 season, with technical information listed here.
    Wiring Pinout:

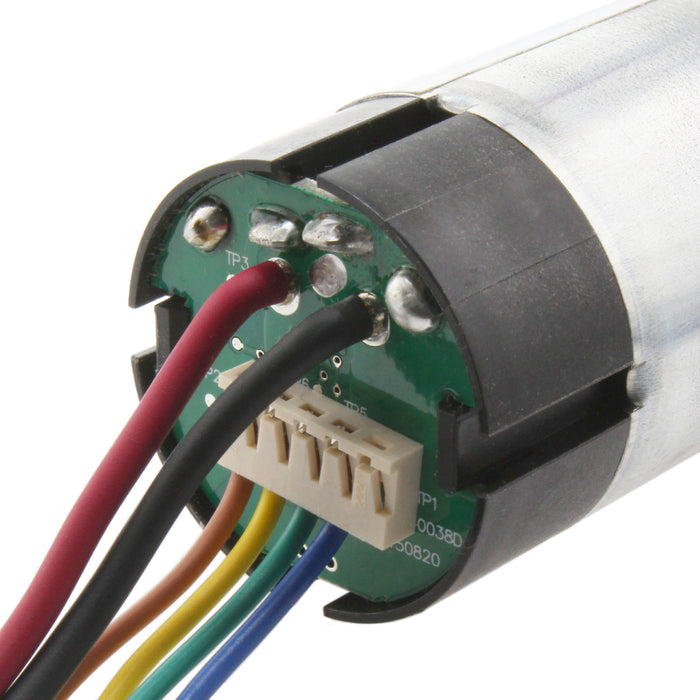

    • Brown: Encoder 5V
    • Yellow: Hall Effect Encoder 1 Output
    • Green: Hall Effect Encoder 2 Output
    • Blue: Hall Effect Encoder Ground
    • Red: Motor 12V
    • Black: Motor Ground

    • Free Current: 2 A
    • Free Speed: 410 RPM
    • Manufacturer Part Number: JE-PLG-149
    • Maximum Power: 47 W
    • Ratio: 22.2:1
    • Stall Current: 26 A
    • Stall Torque: 3.3 ft-lb [4.5 N-m]
    • Wattage: 47 W
    • Weight: 0.521 lbs.

  • CAD Files

    am-4233 JE-PLG-149 motor only.STEP

    Guides

    am-4233 JE-PLG-149 motor curve.pdf

    Layout Prints

    am-4233 JE Motor.pdf
    am-4233 JE-PLG-149 motor.PDF

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
D
Dt from BOISE
A compact gear motor with some advantages

At first you have to wonder what good this is without an output shaft and easy mounting. But an output shaft is easy to make if you have access to a mill. The compact size and relatively high torque of this gearmotor make it useful for a lot of FRC applications. The built-in encoder is a real plus, too. You will have to get a bit creative on mounting the motor.
