SRX Magnetic Encoder No Magnet

This product is currently unavailable for purchase.

The SRX Mag Encoder is a rotary sensor that can be used to measure rotational position and velocity. The device senses the magnetic field of a diametrically polarized magnet to determine rotational...Read More

0 reviews

Write a Review

View Full Details

Product Overview

The SRX Mag Encoder is a rotary sensor that can be used to measure rotational position and velocity. The device senses the magnetic field of a diametrically polarized magnet to determine rotational position with 12 bit precision. The device provides both a Quadrature interface that may be used for relative position measurement and a Pulse Width Modulated output for absolute position measurement. The device connects directly to the Talon SRX data port and is directly supported in the Talon SRX firmware. Please see Magnetic Encoder user's guide for more information and kit contents.

If you also wish to purchase a magnet for this encoder to read off we sell am-3505 which is functionally identical to the stock magnet but is longer.

Works with this cable:
Talon SRX Data Cable, 6 in (am-2617)

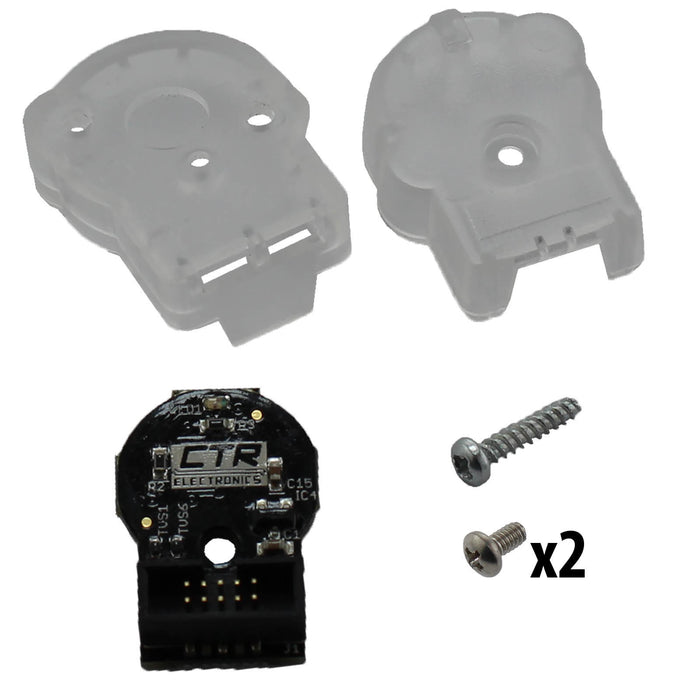

Included Components:
  • 1 - Clear ABS Housing
  • 2 - 3-48 Housing Screws
  • 1 - 2-28 x 7/16" Mounting Screw

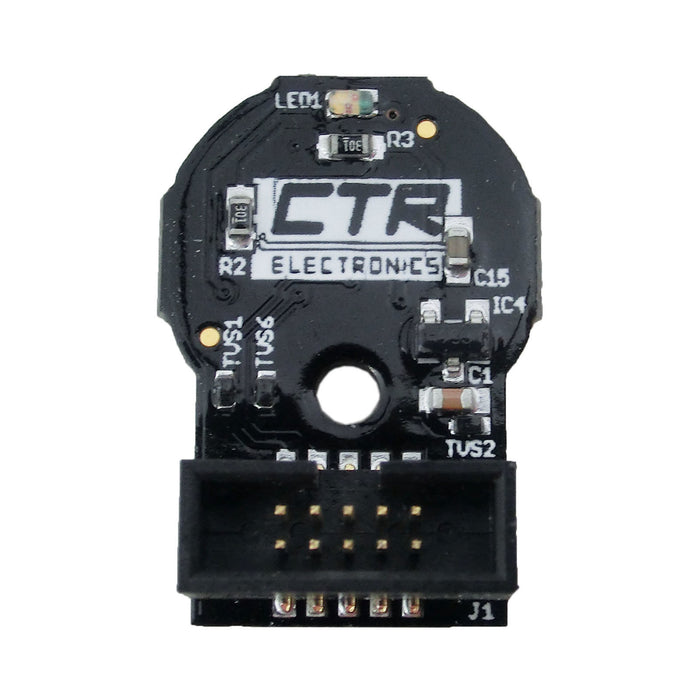

  • 1 - Encoder Board

For Cross The Road Electronics warranty replacements or assistance with CTRE products, please contact Cross The Road Electronics. Email: support@ctr-electronics.com

Specifications

  • Product Lifecycle: replaced by <a href='/products/srx-magnetic-encoder'>am-3445</a>
