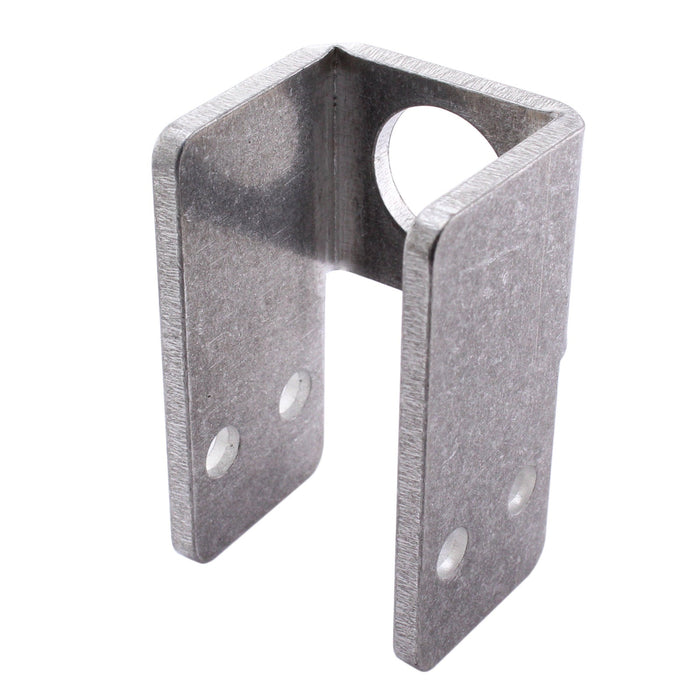

Inline Cylinder Mount Bracket
This bracket allows attachment of an air cylinder to extrusion that has a 1 in. wide dimension such as Peanut or 2x1 box tube
Product Overview
This bracket allows attachment of an air cylinder to extrusion that has a 1 in. wide dimension such as Peanut or 2x1 box tube
Specifications
- Cylinder Mounting Diameter: 0.623 in.
- Material: 5052 Aluminum
- Product Lifecycle: replaced by <a href='/products/inline-cylinder-mount-bracket-1'>am-3065a</a>
Documents
Layout Print(s)
CAD File(s)
Don't see what you need?
Returns
Returns are not accepted for this product.
Recommendations
2 reviews
-
Another fabulous RoboGreg product!
Mounting holes are 0.188" so you will need to resize if ¼" is your style.
-
Material is too light
This is a good basic design, but the bracket at 0.090 thick is flimsy. It needs to be at least 0.125 aluminum.
