Name: 1 x 1 Peanut Extrusion Different Lengths
Brand: AndyMark
SKU: am-3395
Price: 4.25 USD
Availability: InStock

Description
Specifications
Documentation

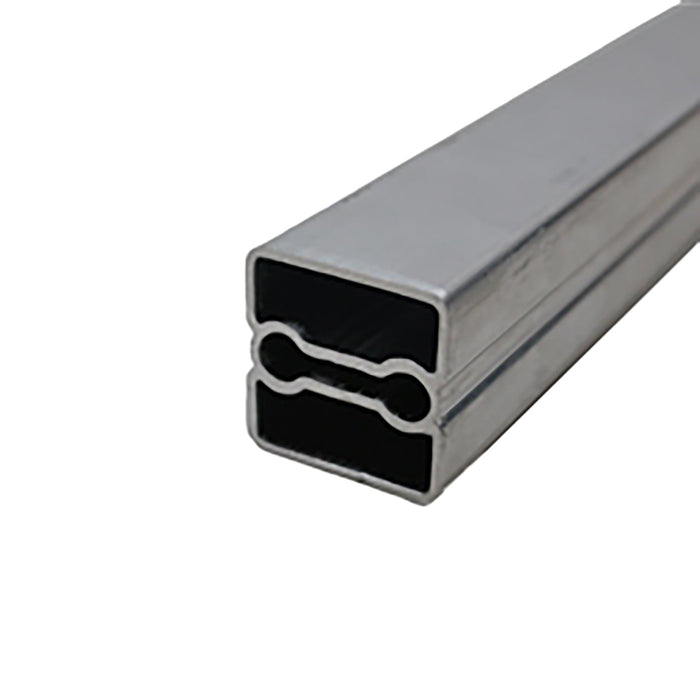

Peanut Extrusion is the 1 in. x 1 in. installment of our easy-to-use structure system. The profile of this extrusion looks like a peanut, and has two holes sized for 1/4-20 thread-forming screws. The added mid-spans are positioned to flank a pair of bolts that self thread into an adjoining piece of Peanut Extrusion. These spans prevent the extrusion from getting crushed by over-tightening. Enjoy the ease of creating rigid corner joints without gussets, with a closed profile that prevents dust and debris build up. Whether you are making a table in your shop or a strong frame for a robot, this extrusion is the one for you!
Walnut Extrusion is the 2 in. x 1 in. iteration of the Peanut profile.

The anodizing process may result in colors that are not exact to the reference photo. FED-STD-595 is a color description system. These anodized products can be described by this system as follows:

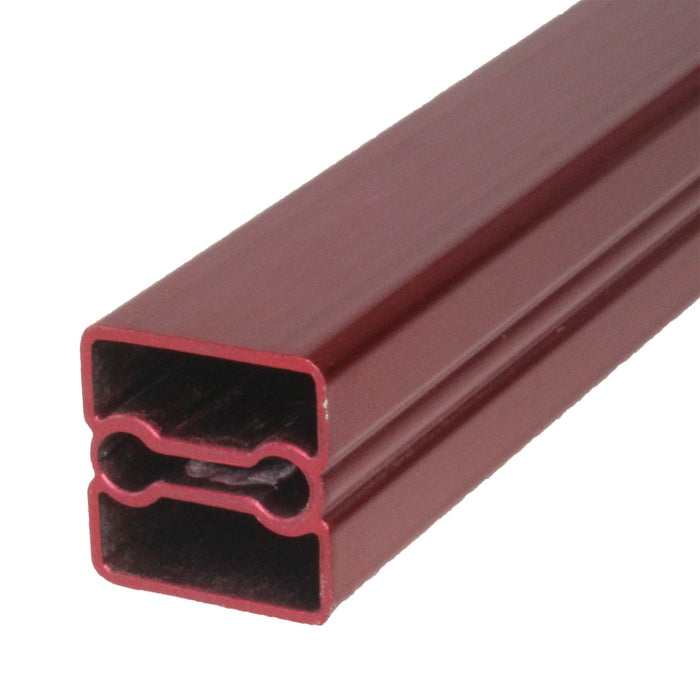

Red: 31310-31136

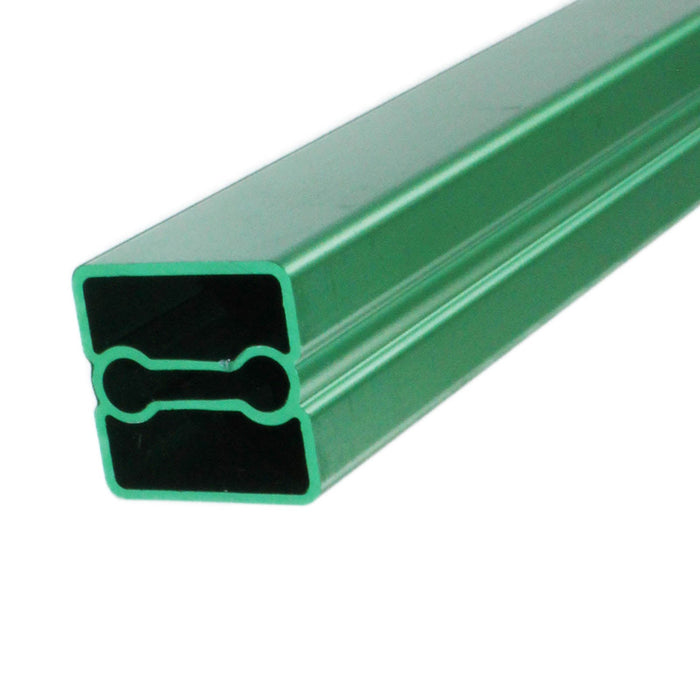

Green: 24449-24272

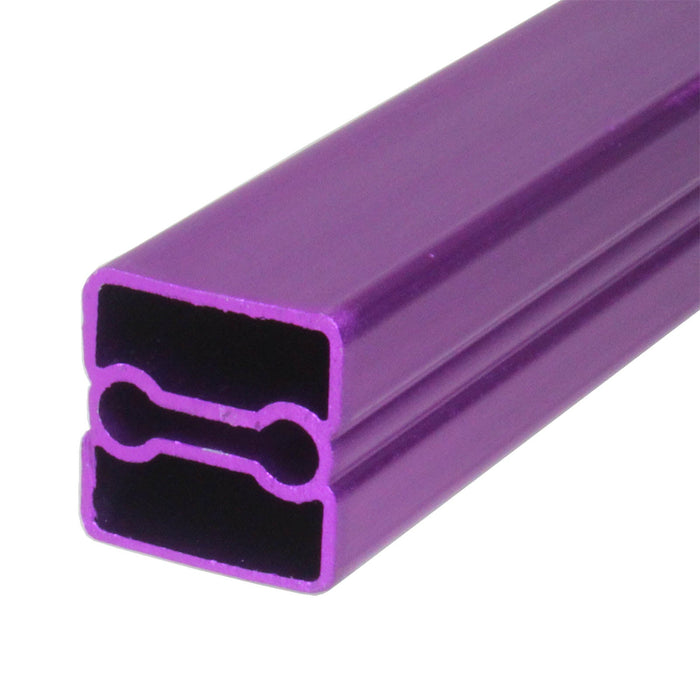

Violet: 27142-27144

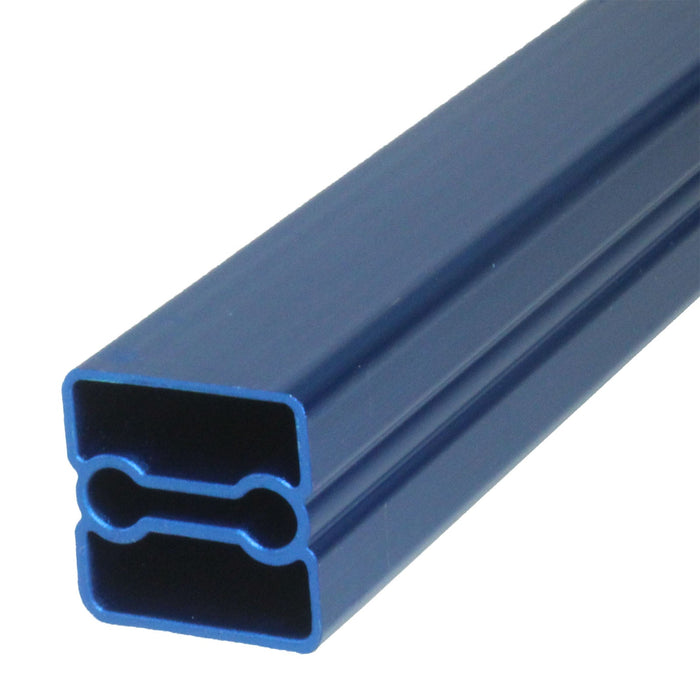

Blue: 35183-35180

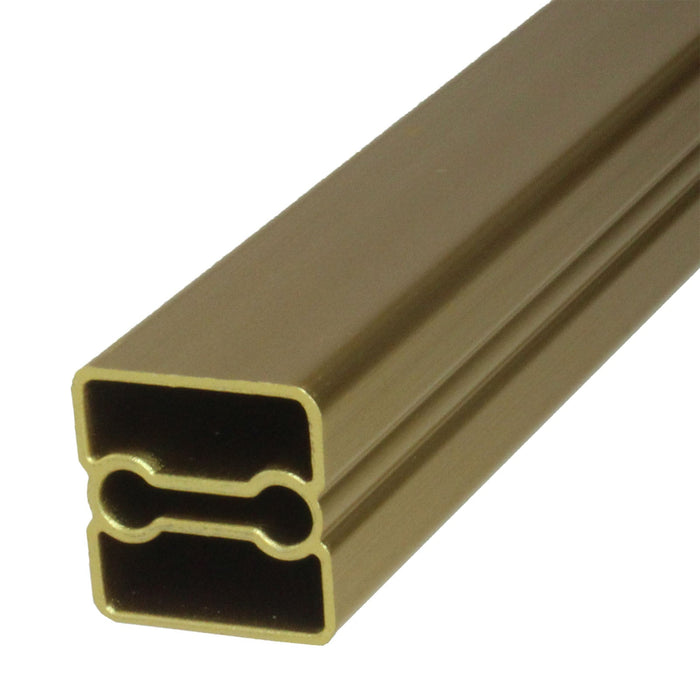

Gold: 10260-10371
- Height: 1 in.
- Hole Size: Sized for 1/4-20 Thread-Forming Screw
- Length: Selectable Above (+/- 1 in.)
- Material: 6063-T6 Aluminum
- Wall Thickness: 0.050 in.
- Weight Per Foot: 0.325 lbs.
- Width: 1.0 in.
Layout Prints
am-5733 Ramp 45in Peanut Extrusion.pdf
am-5725 Ramp 28in Peanut Extrusion.pdf
am-3090-18 17.955IN Peanut Extrusion.pdf
am-3090 Peanut Extrusion.PDF
CAD Files

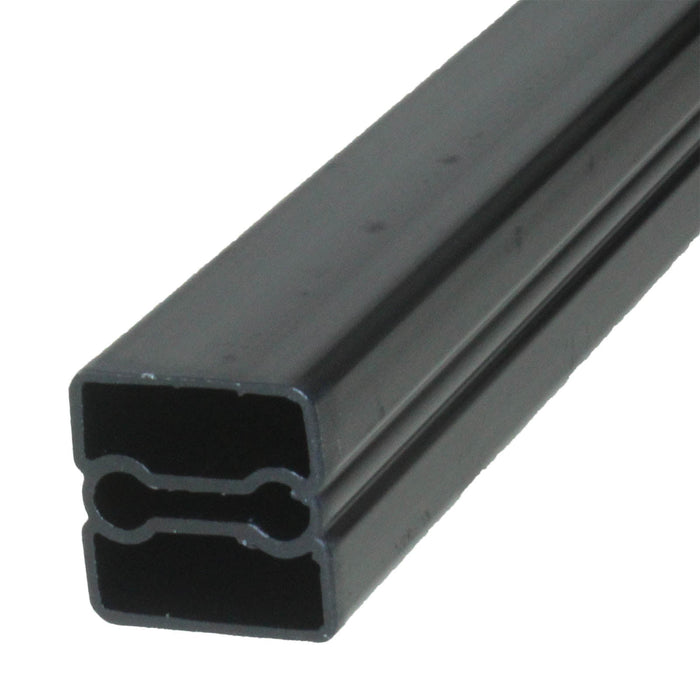

am-3395_black 11.250in Black Annodized Peanut.STEP
am-3090-18 17.955IN Peanut Extrusion.STEP
am-3090-1 One Foot Peanut Extrusion.STEP
