Programmable Servos
$30.00
The AndyMark Programmable Servos are adjustable metal-geared servos that are perfect for use in robot mechanisms. These servos can be programmed to include angular limits as well as continuous rota...Read More
0 reviews
Write a ReviewProduct Overview

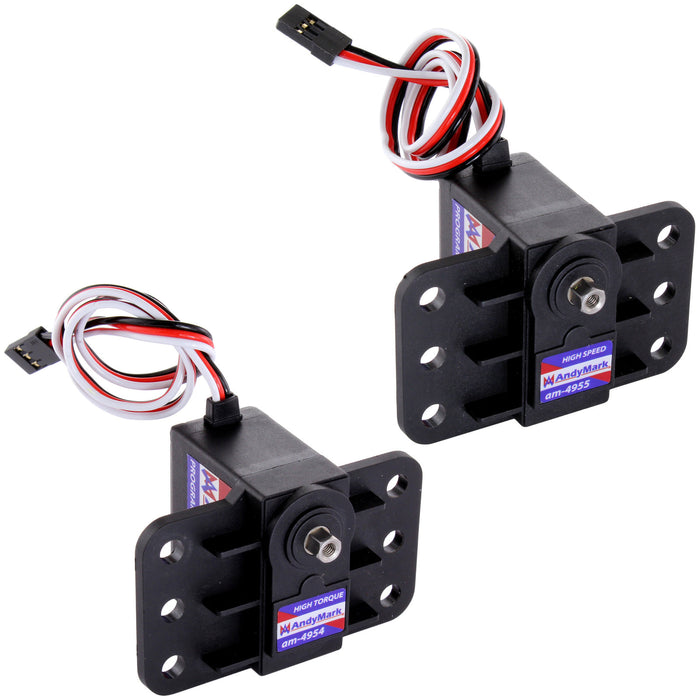

The AndyMark Programmable Servos are adjustable metal-geared servos that are perfect for use in robot mechanisms. These servos can be programmed to include angular limits as well as continuous rotation mode, making them highly adaptable. Overall, these servos are designed to fuse many ease-of-use features into one package. The built in mounting tabs feature 10-32 sized holes on a 1/2" spacing making it easy to integrate into designs. Additionally, the hex output makes adding attachments a breeze.
This servo defaults to the standard angular mode and will respond to input pulses between 500μs – 2500μs.
Programmable Features
- Programming the servos can be done with the Programmable Servo Programmer (am-3218) sold separately.
- Angular Mode
- Angular limits and run to position commands can be modified to allow full or clipped positional range.
- Continuous Rotation Mode
- Continuous rotation mode can be set from the programmer and allow the output to spin indefinitely in either direction.
am-4954 High Torque
Specifications:- Default Angular Range: 280°
- Input Pulse Range: 500μs – 2500μs
- Size: 2.5 in. x 1.64 in. x 1.76 in.
- Speed: 0.2 s/60° , ~50 RPM (at 6V)
- Output Material: Steel
- Output Profile: 5mm Hex with M3 threads
- Stall Current: 1.7A max (at 6V)
- Stall Torque: 22 kg-cm / 300 oz-in (at 6V)
- Voltage Rating: 4.8V – 7.4V, 6V nominal
- Weight: 2.4 oz.
am-4955 High Speed
- Default Angular Range: 300°
- Input Pulse Range: 500μs – 2500μs
- Size: 2.5 in. x 1.64 in. x 1.76 in.
- Speed: 0.05 s/60°, ~200RPM (at 6V)
- Output Material: Steel
- Output Profile: 5mm Hex with M3 threads
- Stall Current: 2.7A max (at 6V)
- Stall Torque: 7 kg-cm / 96 oz-in (at 6V)
- Voltage Rating: 4.8V – 7.4V, 6V nominal
- Weight: 2.4 oz.
Specifications
- Product Lifecycle: Coming September 2023
