This product has been replaced by Programmable Servos
Hi-Tec Servo Hi-Tec HS-805BB - am-2191_1 - Image-1 - migrated

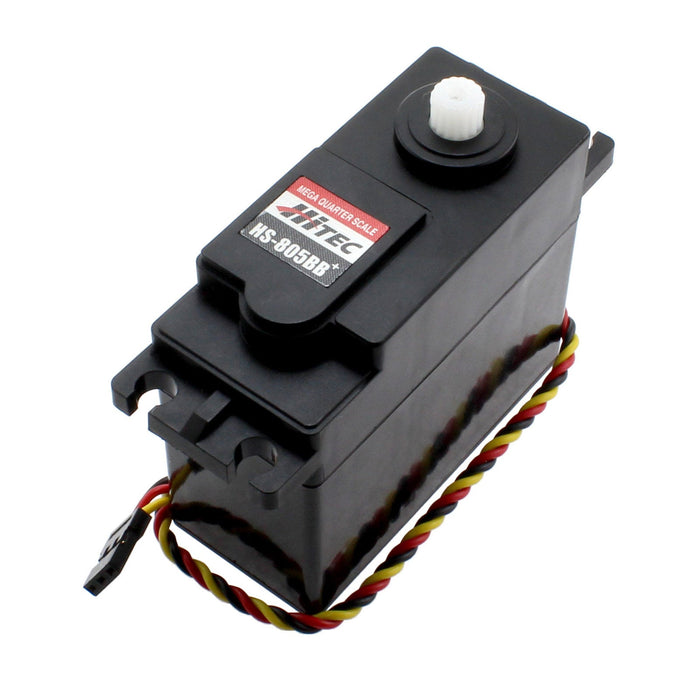

Hi-Tec Servo Hi-Tec HS-805BB

by AndyMark
$61.00 USD
$61.00 USD - $61.00 USD
$61.00 USD
$29.00 USD
$29.00 USD - $29.00 USD
$29.00 USD
This is a high powered servo.

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and has been replaced by Programmable Servos

This product is currently unavailable for purchase

SKU am-2191
  • Description
  • Specifications
  • This servo offers a higher level of power than many servos. If you need lots of power in a servo, look no further.

    Please note, this servo is NOT legal for use in FTC.
    • 360 Modifiable: Yes
    • Free Speed: 60° / 0.19 Seconds @ 4.8 V, 60° / 0.14 Seconds @ 6 V
    • Input Pulse Range: +Pulse Width Control 1500 us Neutral
    • Operating Angle: 45° one side pulse traveling 400 us
    • Operating Voltage: 4.8 - 6.0 V
    • Required Pulse: 3-5 Volt Peak to Peak Square Wave
    • Size: 2.59 in. x 1.18 in. x 2.26 in. [66 mm x 30 mm x 57.6 mm]
    • Spline Profile: 15T (D1 Standard)
    • Stall Torque: 1.432 ft-lb [1.941 N-m] @ 4.8 V, 1.787 ft-lb [2.422 N-m] @ 6 V
    • Weight: 5.36 oz.
    • Wire Length: 11.81 in.
