Hall Effect Sensor

$11.00 – $21.00

Select option to view product code

The best way to Hall Effect is here. Easily see when the magnet is close to this hall effect sensor with the onboard blue LED. The LED is Solid to indicate it's power and will turn off when the mag...Read More

View Full Details

Product Overview

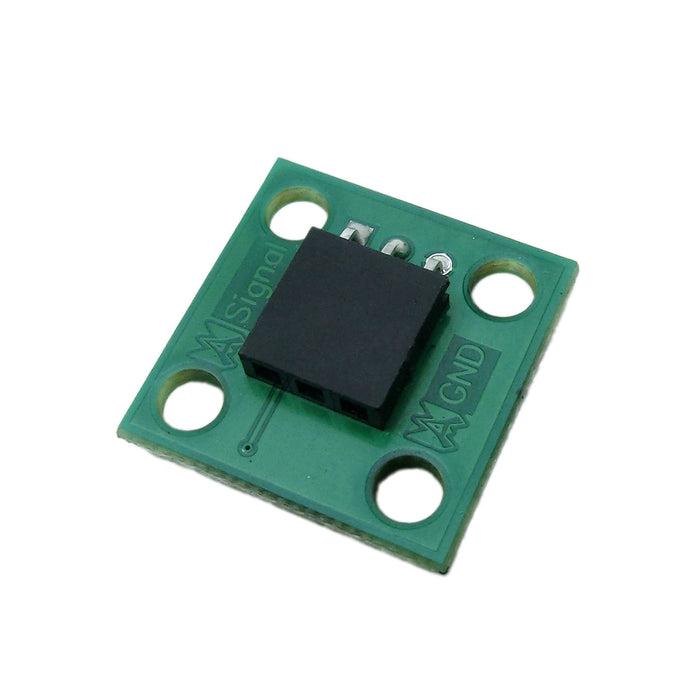

The best way to Hall Effect is here. Easily see when the magnet is close to this hall effect sensor with the onboard blue LED. The LED is Solid to indicate it's power and will turn off when the magnet is near.

This Hall Effect is designed specifically for FIRST Robotics Competition teams. You will find this sensor being used as a limit switch in our line of DART Linear Actuators DART, 12" Actuator Kit (am-3072a) and DART, 6" Actuator Kit (am-3076a).

The sensor works with either pole of the magnet and reading the sensor is easy. 5 volts means the component is safe to move 0v means the magnet is under it. You can use two for mounting and two for a cable tie to hold the connecting cable in place.

Connect this sensor to your robot controller using a male PWM cable into the sensor. Black is ground, red is 5 volts, and white is signal.

Want the best set of hardware? Select this sensor with accessories above for mounting hardware too!

Individual Components within "With Accessories" Bundle

  • 1 - 3 Wire 36 inch Male to Female PWM Cable (am-0695)
  • 2 - 10-32 Nylock Jam Nut (am-1063)
  • 1 - 6-32 Nylock Jam Nut (am-1419)
  • 2 - 10-32 x 0.75 Hex Drive Button Head Cap Screw (am-1524)
  • 1 - 6-32 x 0.625 in. Flat Head Cap Screw (am-1570)
  • 1 - Hall Effect Sensor (am-3313b)
  • 1 -  5/8 in. OD 1/8 in. ID Ring Magnet (am-3892)
  • 2 - 0.912 in. ID 0.375 in. OD 0.25 in. Long Aluminum Spacer (am-4209)

Features:

  • High Sensitivity
  • Small Footprint
  • Blue LED Indicator of Activity
  • Designed for FRC use

Dimensions:

  • Length: 1.41"
  • Width: 0.625"
  • .201" holes spaced 1" apart
  • .0625" Thickness

Specifications

  • Length: 0.75 in.
  • Pole Detection: Bipolar
  • Thickness: 0.0625 in.
  • Voltage: 5 VDC
  • Width: 0.75 in.

Returns

Returns are accepted within 30 days of purchase.
View our return policy here.
