AndyMark 775 RedLine Motor

am-3775a

$19.00

This updated version of the AndyMark 775 RedLine Motor is an even faster and more powerful version of this popular 775-class motor platform. With a power rating of up to 382W, this motor is capable...Read More

star star star star star

Read Reviews (1) Write a Review

Product Overview

This updated version of the AndyMark 775 RedLine Motor is an even faster and more powerful version of this popular 775-class motor platform. With a power rating of up to 382W, this motor is capable of delivering even more immense power in the same small lightweight package over the previous version. This ball-bearing supported, air cooled motor is best used in high-speed applications where the motor will not be stalled for long periods such as shooters, conveyors, and intake mechanisms. With sufficient care and attention to your application's traction limit, this motor can be effective in FRC drive applications as well.

Product Usage:
Motors need air flow to keep cool. A hot motor won't last nearly as long, or deliver the power it once did new. To keep a RedLine cool and in great shape, use a 775 Vent Plate Spacer, am-3650 when mounting to a custom gearbox. All of our gearboxes that use this motor have vent plate spacers included with your purchase or include sufficient venting machined in.

Useful Additional Parts:


Motor has the following information laser etched on the flux ring:
Manufacturer Part number: DF-30F-2003
Logo: AndyMark Logo
AndyMark Part Number: am-3775a
Voltage: 12VDC
Date Code: YYWWD

Specifications

  • Bolt Pattern: 2 M4x0.7 Holes on a 29 mm diameter bolt circle
  • Diameter: 1.744 in.
  • Length: 3.455 in.
  • Maximum Power: 380 Watts (+/- 10%)
  • No Load Current: 3.8 A
  • No Load RPM: 21020 RPM (+/- 10%)
  • Output Shaft Diameter: 5 mm
  • Output Shaft Length: 0.346 in.
  • Stall Current: 130 A
  • Stall Torque: 0.7 N-m (6.2 in-lbs) (+/- 10%)
  • Voltage: 12 VDC
  • Weight: 0.806 lb

Documents

CAD File(s)
am-3775a AndyMark RedLine Motor.STEP
Guide(s)
am-3775a RedLine Performance Curve.PDF
Layout Print(s)
am-3775a AndyMark RedLine Motor.PDF
am-3775a_12T 775a RedLine with 12T Pinion.PDF
am-3775a_16T 775a RedLine with 16T Pinion.PDF
Don't see what you need?
See_all_our_guides,_drawings_and_CAD_files_here

Recommendations

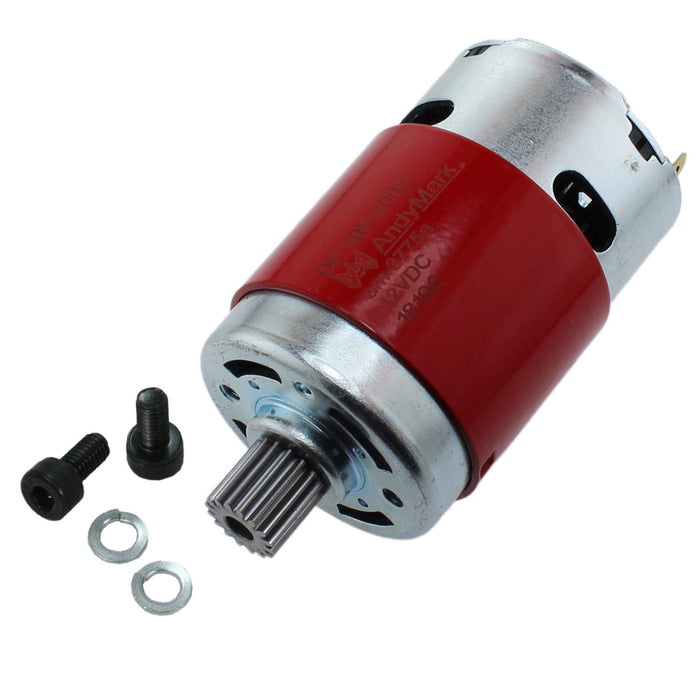

AndyMark 775a RedLine Motor with 16 Tooth 0.7 Module Pinion Gear Installed

am-3775a_16t

$26.50

AndyMark 775a RedLine Motor with 12 Tooth 32DP Pinion Gear Installed

am-3775a_12t

$28.00

BaneBots 550 Motor

$9.00 – $18.50

2.5 in. CIM Motor

$33.00 – $45.00

RS775-125 Motor For PG27 Gearbox

am-2194

$18.00

RS775-125 Motor, with Encoder, for PG27 Gearbox

am-3109

$18.00

1 review

Write a Review

  1. star star star star star

    Great Motor - The Pinnacle of the Air-Cooled High Power Brushed Motors in FRC

    We on 1519 have loved the AndyMark 775 RedLine motor during the past few years. They were the go-to motor for high-power, high-RPM applications on our 2019 robot, particularly when coupled with the am-3773 RedLine Encoder Kit on the backshaft of the RedLine motor. Two RedLine motors (paired with a 325:1 Dual 775 Sport) ran the arm on our 2019 robot. With that gear reduction (plus more in the final chain drive), these motors worked flawlessly all year long. We also used four of these (again paired with the 325:1 Dual 775 Sport) for our 4-bar linkage climber in 2019 as well, with outstanding success. We'd definitely use them again for the right application. However, with the brushless motor revolution coming upon FRC, the days of the RedLine motor may be numbered.
