This product has been replaced by am-3775a

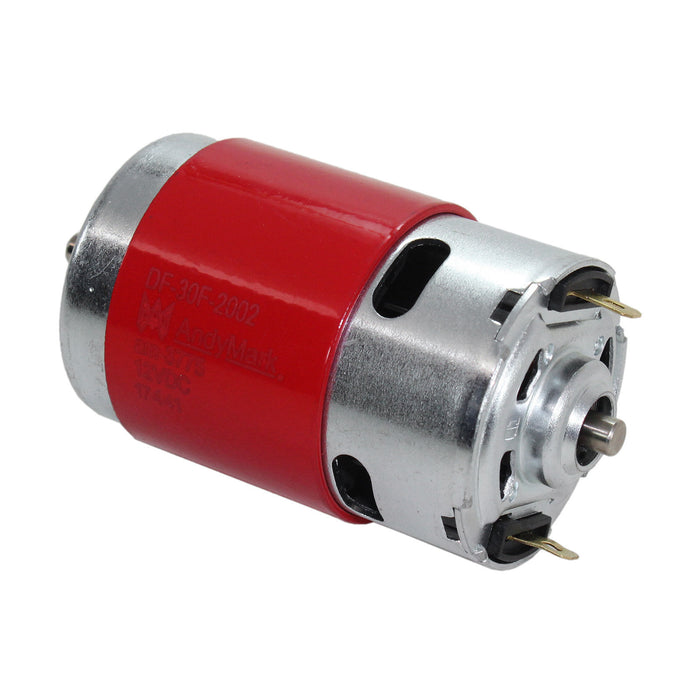

AndyMark 775 RedLine Motor - am-3775_1 - Image-1 - migrated

AndyMark 775 RedLine Motor

by AndyMark
$18.00 USD - $18.00 USD
$18.00 USD
$18.00 USD
$18.00 USD - $18.00 USD
$18.00 USD

The information provided on this page is retained for posterity.

This product is no longer for sale at AndyMark and has been replaced by am-3775a

This product is currently unavailable for purchase

SKU am-3775
  • Description
  • Specifications
  • Documentation
  • This products has been replaced by am-3775a. This version is no longer available.

    We give you the AndyMark 775 RedLine Motor. A fast and fierce 775-class motor that FRC teams know and love, capable of delivering immense power in a small, lightweight package. This ball-bearing supported, air cooled motor is best used in high-speed applications where the motor will not be stalled for long periods such as shooters, conveyors, and intake mechanisms. With sufficient care and attention to your application's traction limit, this motor has proven effective in FRC drive applications as well.

    Product Usage:


    Motors need air flow to keep cool. A hot motor won't last nearly as long, or deliver the power it once did new. To keep a RedLine cool and in great shape, use a 775 Vent Plate Spacer, am-3650 when mounting to a custom gearbox. All of our gearboxes that use this motor have vent plate spacers included with your purchase or include sufficient venting machined in.


    Useful Additional Parts:


    Manufacturer Performance Specs:

    Motor has the following information laser etched on the flux ring:
    CCL part number: DF-30F-2002
    Logo: AndyMark Logo
    AndyMark Part number: am-3775
    Voltage: 12VDC
    Date Code: YYWWD
    • Weight: 0.806 lbs.

  • CAD Files

    am-3775 RedLine Motor.STEP

    Layout Prints

    am-3775 AndyMark 775 RedLine Motor.PDF

    Datasheets

    am-3775 RedLine Motor Performance Curves.PDF
