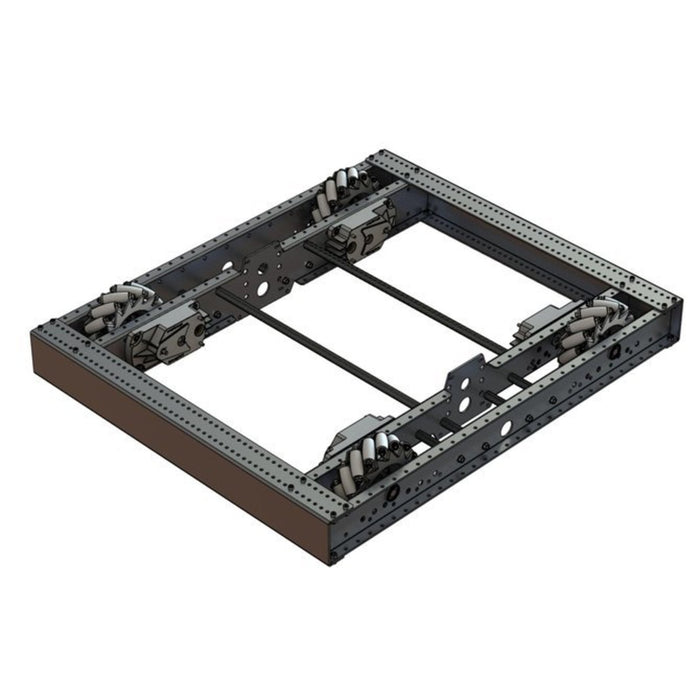

AM14U4 6 in. SR Mecanum and Toughbox Micro Bundle
This bundle features our popular AM14U4 Drive Base paired with our 6" SR Mecanum Wheels! This chassis configuration is perfect in applications that require sideways translation of a mobile platform...Read More
0 reviews
Write a ReviewProduct Overview
This bundle features our popular AM14U4 Drive Base paired with our 6" SR Mecanum Wheels! This chassis configuration is perfect in applications that require sideways translation of a mobile platform, while maintaining traditional skid-steer movement ability. This configuration is a solid foundation for building highly maneuverable mobile robotics platforms for relatively smooth driving environments. This drive configuration is powered by Toughbox Micro gearboxes, with a 10.71:1 overall ratio. These are directly connected to the 6" wheels that complete this chassis. This product ships as an un-assembled kit, and does not include the CIM motors.
Parts Include:
- 2 - Inside Rail(am-3922)
- 2 - End Plate(am-3920)
- 2 - Outside Plate(am-3921)
- 2 - Churro, 24.25" Long (am-2974)
- 28 - Churro Screws (am-1310)
- 4 - Nut, Nylock, 3/8-16(am-1054)
- 4 - Screw, HHCS, 3/8-16 x 4250, Gr5 Zinc(am-1297)
- 2 - Hex Spacer, Plastic, 0.50" id, 1.124" od, 0.570" long(am-1305)
- 4 - Spacer, 0.280", 0.382" ID 0.518" OD, Plastic(am-1306)
- 4 - Spacer, 0.850", 0.380" ID 0.75" OD, Plastic(am-1307)
- 24 - Screw, SHCS, 10-32 x 500(am-1002)
- 24 - Nut, Nylock, 10-32(am-1042)
- 12 - Churro, 3.375" Long(am-2569)
- 48 - Screw, Thread Forming, 10-24 x 1250, Steel Zinc(am-1266)
- 1 - 6in SR Mecanum Wheel Set (am-3479a)
- 4 - ToughBox Micro 10.71:1 Ratio, No Plate (am-3232_107)
- 4 - 500EX Hex Hub (am-2568)
- 4 - 500 Hex Spacer, 1.000in long (am-3948-1000)
- 4 - FR8ZZ HD Hex Bearing (am-2986)
- 4 - 500Hex AL Spacer, 1.200in long (am-3896-1200)
- 25 - 10-32 Nylock Nut (am-1042)
- 25 - 10-32 x 0.750 SHCS (am-1047)
Specifications
- Product Lifecycle: replaced by <a href='/products/am14u5-6-in-sr-mecanum-and-toughbox-micro-bundle'>BD56MB</a>
