AM14U4 2020 Family Vertical Battery Mount Kit

am-3964a

$35.00

This battery tray mounts perfectly into the AM14U family of chassis. The hook and loop strap then secures batteries into the tray. It surrounds the battery and holds it in a vertical orientation. T...Read More

0 reviews

Write a Review

View Full Details

Product Overview

This battery tray mounts perfectly into the AM14U family of chassis. The hook and loop strap then secures batteries into the tray. It surrounds the battery and holds it in a vertical orientation. There is a tab and included hardware to bolt down either the SB120 or SB50 robot side battery connector. Keep your battery secure and safe during those sudden hits with this kit.

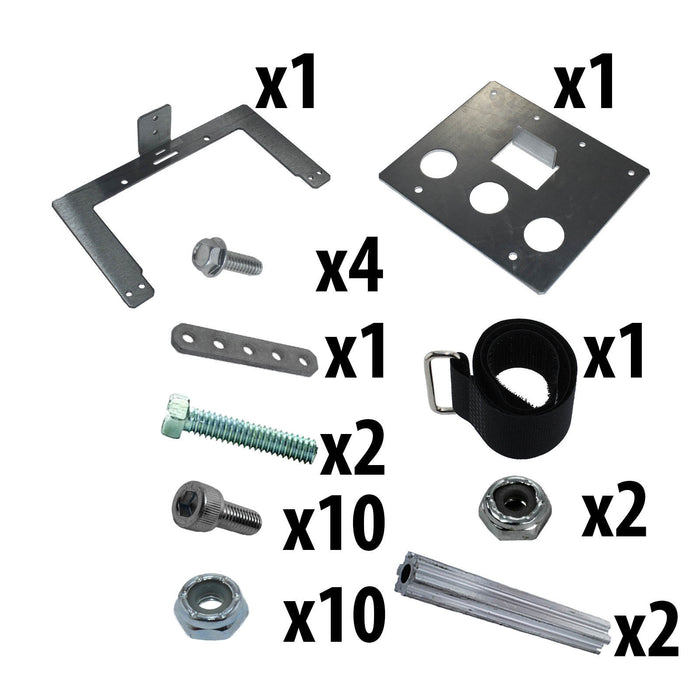

Included Hardware:
  • Eight - 10-32 x 0.500 in. Socket Head Cap Screw (am-1002)
  • Four - 1/4-20 x 0.750 in. Thread Forming Screw (am-1310)
  • Two - 6-32 x 0.750 in. Hex Head Screw (am-1424)
  • Two - 6-32 Nylock Jam Nut (am-1419)
  • Ten - 10-32 Nylock Jam Nut (am-1063)
  • Two - 3.375 in. Long Churro (am-2569)
  • One - Vertical Battery Mount Strap Used for am14U4 with Sewn Ends (am-3965a)
  • One - Vertical Battery Mount Strap Clamp (am-3960)
  • Two - 0.375 in. OD x 0.192 in. ID x 1.000 in. Long Spacer (am-3876)
  • Two - 10-32 x 1.500 in. Socket Head Cap Screw (am-1014)

Specifications

  • Weight: 0.28 pounds
