4 Gauge Battery Cable
am-3777
$25.00
Six gauge battery cables have been around for a long time in competitive robotics. With a larger wire gauge, however, you can prolong your breaker life thanks to the lower resistance of the larger ...Read More
Product Overview

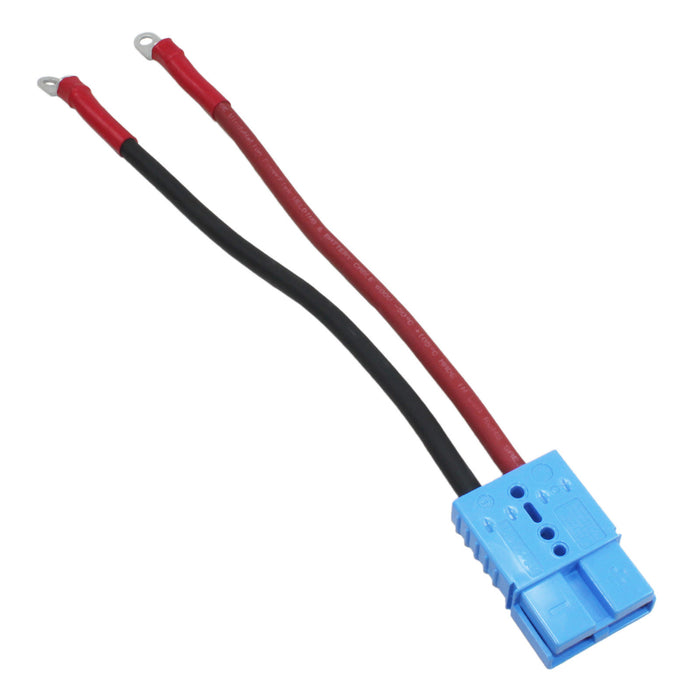

Six gauge battery cables have been around for a long time in competitive robotics. With a larger wire gauge, however, you can prolong your breaker life thanks to the lower resistance of the larger flexible wire. This battery cable features four gauge multi-strand wires along with an SB120 Anderson Power Products connector. This battery cable can be used with other power components using the SB120 connector.
Associated Power Components:
SB120 to SB50 Adapter (am-3856)
Robot Power Cable Kit, custom lengths up to 36 in.
Understanding Cable Length:
Tip to tip length is approximately 14.5 inches. 2.5 inches of length is the SB120 connector and 1.25 inches make up the connecting lugs.
Associated Power Components:
SB120 to SB50 Adapter (am-3856)
Robot Power Cable Kit, custom lengths up to 36 in.
Understanding Cable Length:
Tip to tip length is approximately 14.5 inches. 2.5 inches of length is the SB120 connector and 1.25 inches make up the connecting lugs.
Note:
While this Battery Cable can be used on FRC robots, it is not compatible with 2022 Kit of Parts components. 6 Gauge Cables are compatible. To convert between the two, an SB120 to SB50 Battery Adapter Cable can be used.
Specifications
- Connecting Tech: Anderson SB120
- Gauge: 4 AWG
- Overall Length: 12 - 14 in. (+/- 0.25 in.)
- Weight: ~ 0.05 lbs
