TileRunner Upgrades

$130.00 – $399.00

TileRunner is the standard for drive systems in FIRST Tech Challenge. We designed it to be configured in many different ways to suit the teams using it. From multiple gearbox locations and options...Read More

0 reviews

Write a Review

Product Overview

TileRunner is the standard for drive systems in FIRST Tech Challenge. We designed it to be configured in many different ways to suit the teams using it. From multiple gearbox locations and options to wheel choices, TileRunner gives you endless adjustment to build your robot your way.

To give teams a head start, we identified five common upgrades on TileRunner's standard drive system. These upgrade kits cover a wide range of use cases, from high-speed maneuvering to moving heavy loads with ease and loads of grip and are used with the TileRunner (am-3437):
  • TileRunner Omni (am-3456): 6WD with omniwheels at the corners is a popular choice among FIRST Tech Challenge teams. Instead of the standard Stealth Wheels, this variation includes two black 4" stealth wheels (am-2648_Blk), four 4" aluminum omniwheels (am-2948), and the necessary hardware.

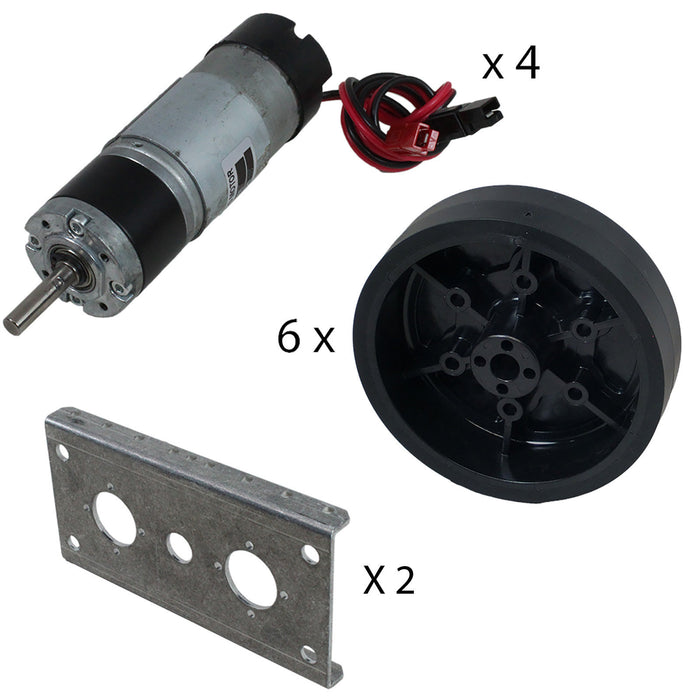

  • TileRunner GTO (am-3734): For increased maneuverability, this version substitutes NeveRest Orbital 20 gearmotors (am-3637) and black 4" Stealth Wheels (am-2648_Blk) with higher grip than stock and the proper mounting plate, PickBox GEO Plate (am-3476), for the Orbital Gearmotors

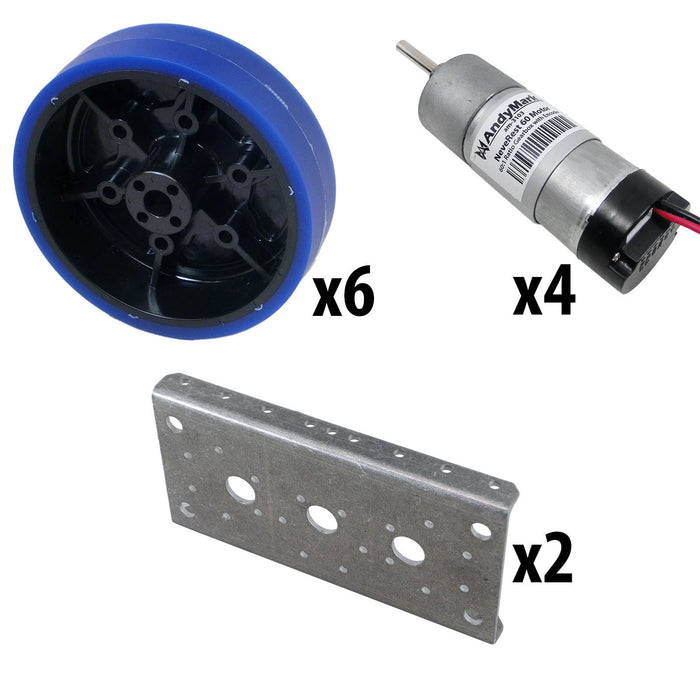

  • TileRunner BullDozer (am-3457): When you want to push, pick this! NeveRest Classic 60 gearmotors (am-3103) provide maximum torque, while six of our softest compound blue 4" Stealth Wheels (am-2648_Blue) put that to the ground for maximum pushing force. Pushing hard will increase wear on these wheels, so have a spare set handy for competition time.
  • TileRunner Hulk (am-3459): The TileRunner Hulk is your go-to for heavy robots! Six 4" Performance Wheels (am-3434) and a 10' roll of our Green Grippy Tread (am-2611) replace the Stealth Wheels and provide a very robust drive system.

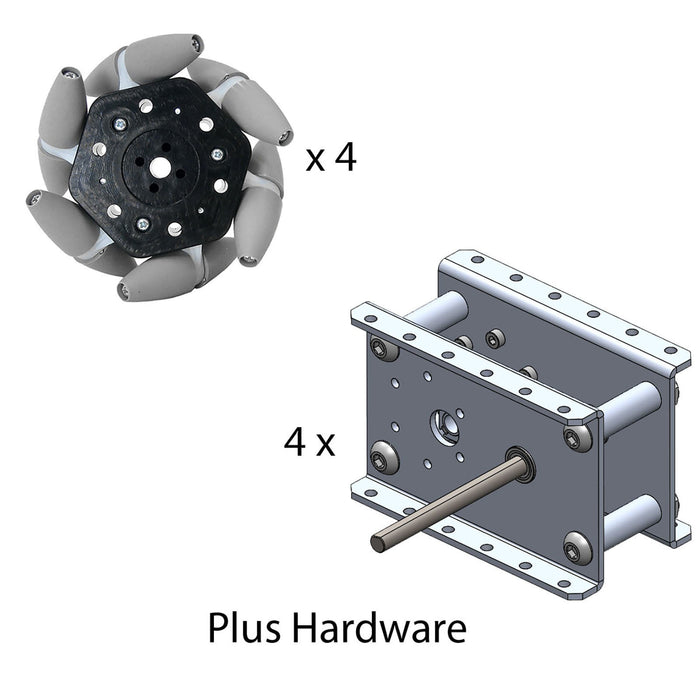

  • TileRunner SD Mecanum (am-3455): Get set to strafe with four PicoBox Unos replacing the two PicoBox Duos of the standard TileRunner. You'll receive four 4" standard-duty mecanum wheels (am-2538) instead of Stealth Wheels, as well as all the spacers, shafts, and gears to get you up and running.
  • SD to HD Mecanum (am-3996): If you already have a TileRunner with SD mecanum wheels this kit will upgrade your chassis to run the new for 2018 HD mecanum wheels. This setup continues to use PicoBox Unos and updates the spacers for the new wheels.
  • TileRunner HD Mecanum (am-3997): Get set to strafe with four PicoBox Unos replacing the two PicoBox Duos of the standard TileRunner. You'll receive four HD Mecanum wheels instead of Stealth Wheels, as well as all the spacers, shafts, and gears to get you up and running.
  • TreadRunner (am-3969): Traverse any terrain with a tread equipped TileRunner. This robot drive chassis drives a pair of 2" wide timing belt treads to push, climb, and overcome obstacles in it's path. Like other standard TileRunners, it uses two PicoBox Duos along with sturdy aluminum sheet metal frame components. This version of the TileRunner retains the drop center performance boost by adding an idler pulley where the traditional center wheel goes. This way the TreadRunner turns on a dime and trucks in a straight line like no TileRunner kit before.
Also find each of these upgrades in complete kits on the TileRunner page.

Included Parts For TileRunner Omni Upgrade (am-3456):
Included Parts For TileRunner GTO Upgrade (am-3734):
Included Parts For TileRunner BullDozer Upgrade (am-3457):
Included Parts For TileRunner Mecanum Upgrade (am-3455):
Included Parts For TileRunner Hulk Upgrade (am-3459):

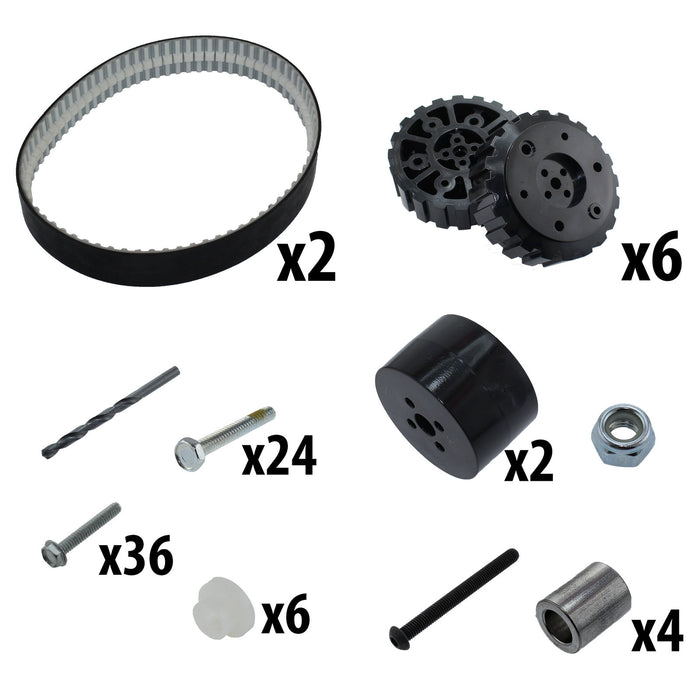

Included Parts for TreadRunner Upgrade (am-3969):
  • 2 - Treads (am-3963)
  • 6 - Pulleys (12 halves) (am-3967)
  • 2 - Tensioner Kits (am-3970h)
  • 6 - 6x4x8 Nylon Spacer (am-1289)
  • 24 - 6-32 x 1.000in Hex Head Cap Screws (am-1426)
  • 36 - 10-24 x 1.250 Thread Forming Screws (am-1266)
  • 1 - Letter O sized Drill bit (Clearance holes for 8mm parts) (am-3978)

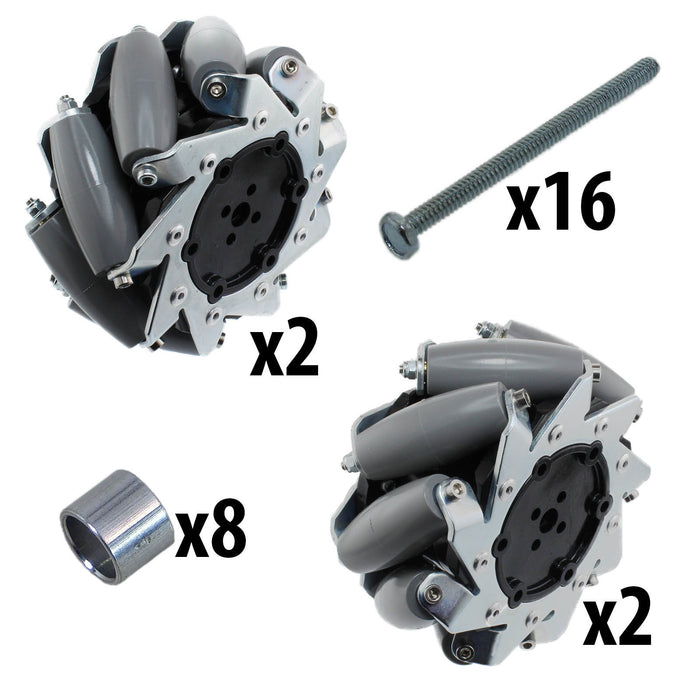

Included Parts for SD to HD Mecanum Upgrade (am-3996):
  • 2 - 4" HD FTC Mecanum wheels, RIGHT (am-3919R)
  • 2 - 4" HD FTC Mecanum wheels, LEFT (am-3919L)
  • 8 - 1/4" Aluminum Spacers (am-3424)
  • 16 - 6-32 x 2.000" Hex Head Cap Screw (am-1499)

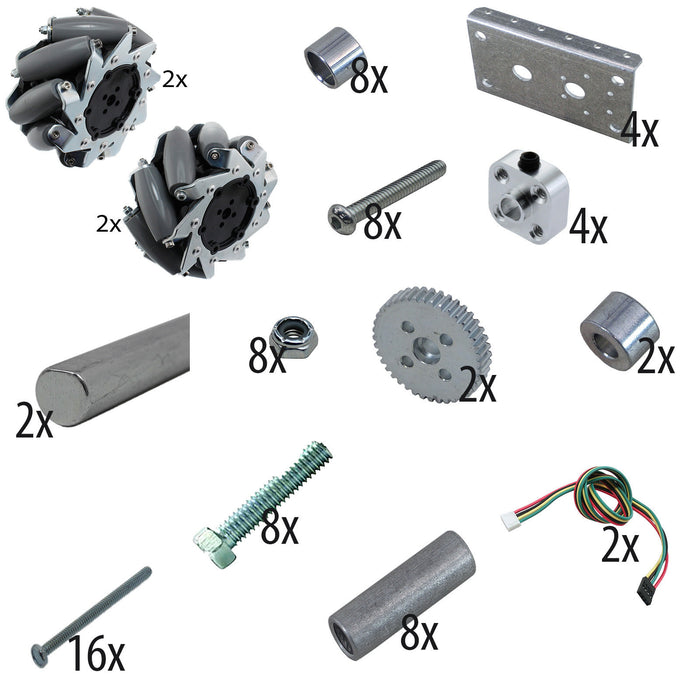

Included Parts for 6wd to HD Mecanum Upgrade (am-3997):
  • 2 - 4" HD FTC Mecanum wheels, RIGHT (am-3919R)
  • 2 - 4" HD FTC Mecanum wheels, LEFT (am-3919L)
  • 8 - 1/4" Aluminum Spacers (am-3424)
  • 16 - 6-32 x 2.000" Hex Head Cap Screw (am-1499)
  • 8 - 6-32 x 0.500" Hex Head Cap Screw (am-1436)
  • 2 - 40t PicoBox Gear (am-3407)
  • 4 - PicoBox Uno Plate (am-3423)
  • 2 - 0.354" Spacer (am-3426)
  • 4 - 6mm D Bore Double Boss Nub (am-3215a)
  • 2 - Encoder Cable (am-2992)
  • 2 - 6mm D Shaft, 100mm long (am-3226-100)
  • 8 - PicoBox Spacers (am-3406)
  • 8 - 1/4-20 Nylock Jam Nut (am-1102)
  • 8 - 1/4-20 x 1.750" Button Head Cap Screw (am-1420)
