PG Series Gearboxes Spacer
am-2062
$13.00
$5.00
This steel disc spacer allows you to mount an RS-550 Motor with a longer output shaft, such as the Banebots 550 (am-3830) or NEO 550 Brushless (am-4259) to a PG71 or PG188 Gearbox.Purchase ...Read More
0 reviews
Write a ReviewProduct Overview

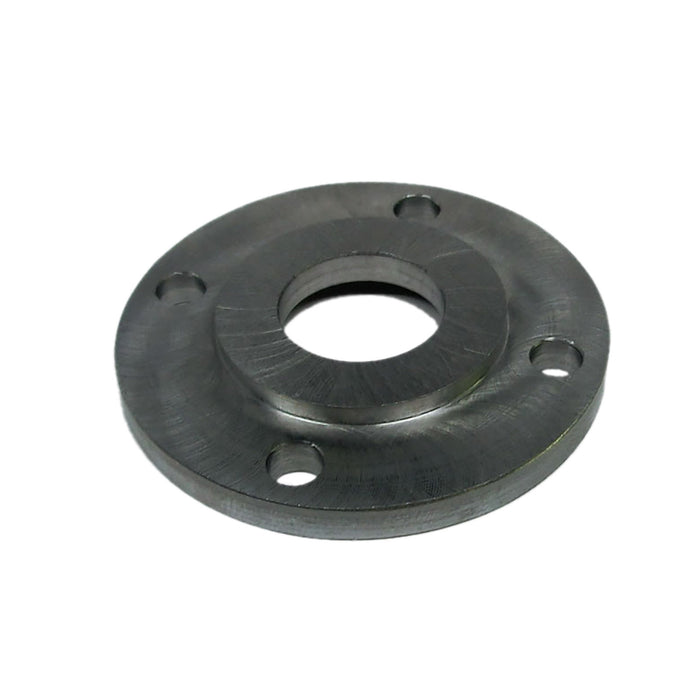

This steel disc spacer allows you to mount an RS-550 Motor with a longer output shaft, such as the Banebots 550 (am-3830) or NEO 550 Brushless (am-4259) to a PG71 or PG188 Gearbox.
Purchase the full bundle of items needed to do this in the PG71 Hardware Kit and PG188 9015 Motor Gearbox (am-2389)
The spacer is used within the gearbox housing to offset the length of the motor shaft, and the same gearbox motor mount plate.
Specifications
- Bolt Pattern: 4 holes (0.178 in. dia holes) on 1.418 in. dia. circle
- Bore: 0.591 in. [15.0 mm] Round
- Inside Diameter: 0.591 in. [15.0 mm]
- Material: Steel
- Outside Diameter: 45 mm
- Weight: 0.15 lbs
