Skitter Classroom Robot

am-SkitterClassroomRobot

$179.00

This two-wheel tabletop robot was developed in collaboration with Purdue University.  Purdue students looking to purchase this robot for classes can get a discounted price with the use of a provide...Read More

View Full Details

Product Overview

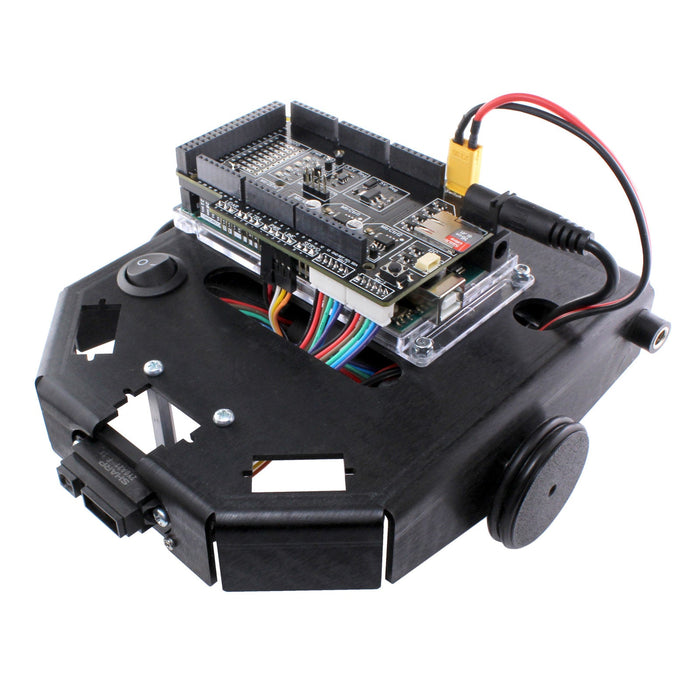

This two-wheel tabletop robot was developed in collaboration with Purdue University.  Purdue students looking to purchase this robot for classes can get a discounted price with the use of a provided coupon code from AndyMark.

This robot platform is intended for use in both university and high school classrooms. It can handle several sensor inputs and has robust drive motors with encoder feedback. The frame is a strong sheet metal construction with a hard-anodized finish.

The intent of this robot platform is to be used on classroom tabletops and floors, transported in student backpacks, and re-used from semester to semester.

Note: NI MyRIO sold separately, Sold as a disassembled kit with tools included.

Features and Specifications:

  • Designed for multiple controller options:
    • NI myRIO Controller (Not Included)
    • more controller versions are being developed
  • Hard-Anodized Sheet Metal Frame
    • 0.09" thick aluminum
  • Robust Drive Motors
    • 12v DC gearmotors with hall effect encoders
    • Output free speed: 245 rpm
    • Rated torque: 5.7 oz-in (410 g-cm)
    • Max current draw: 0.95 amps
    • Max power output: 2.5 Watts at 45% efficiency
  • Motor controller output
    • x2 channel
    • 12v DC
    • 3.6amp peak current
  • Multiple Servo Outputs
    • x1 servo is included
    • x2 additional servos can be added
  • Lithium-ion Battery
    • 12v, 3000mAh
  • Multiple Sensor Inputs
    • Ultrasonic (x1)
    • Touch Sensor (x1)
    • Line Following Sensor (x1)
    • Drive Encoders (x2), Hall Effect, with 3 counts/rev on motor, 735 counts/rev on output shaft
  • Included Tools for Assembly
    • x1 Phillips Head Screw Driver
    • x1 5.5mm Nut Driver
  • Overall size
    • 7.05" long (179mm)
    • 6.54" wide (166mm)
    • 2.42" tall (62mm) without myRIO
    • 2.86" tall (73mm) with myRIO
  • Ground Clearance
    • 3/8" (9.4mm)
  • Weight
    • Under 2 pounds (to be updated)
  • Performance
    • Speed: 21 inches/sec
    • Acceleration: 60 inches/sec^2
    • Rotation rate: 410 degrees/sec
    • Angular acceleration rate: 2,000 degrees/sec^2
