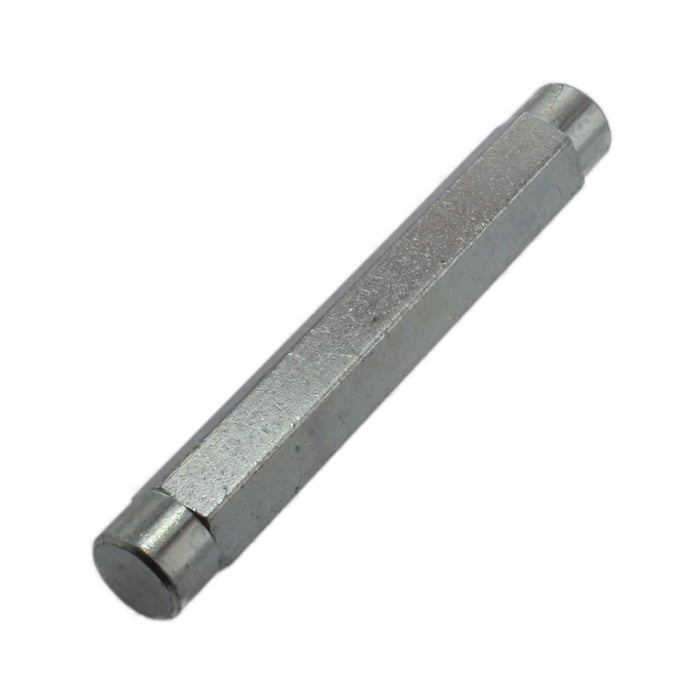

RocketBox Cluster Shaft
am-3330
$11.00
$5.00
Originally designed for use without the RocketBox Gearbox, this shaft can be made useful in your custom applications. The 0.375 in. hex of this shaft is intended to be used with 0.375 in. hex bore ...Read More
0 reviews
Write a ReviewProduct Overview
Originally designed for use without the RocketBox Gearbox, this shaft can be made useful in your custom applications. The 0.375 in. hex of this shaft is intended to be used with 0.375 in. hex bore gears. To see our numerous options of gears check our Gears Category.
Specifications
- Diameter (Hex): 0.373 - 0.375 in.
- Diameter (Round): 0.373 - 0.374 in.
- Finish: Zinc
- Length (Hex): 2.25 in.
- Length (Overall): 2.81 in.
- Length (Round): 0.28 in.
- Material: 4140 Steel
- Overall Length: 2.81 in.
- Weight: 0.094 lbs
Documents
Don't see what you need?
CAD File(s)
Layout Print(s)
Returns
Returns are not accepted for this product.
