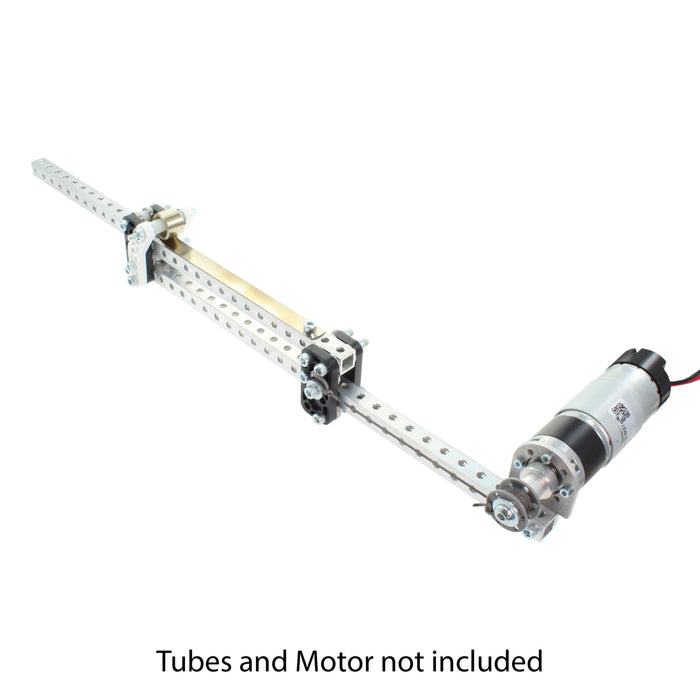

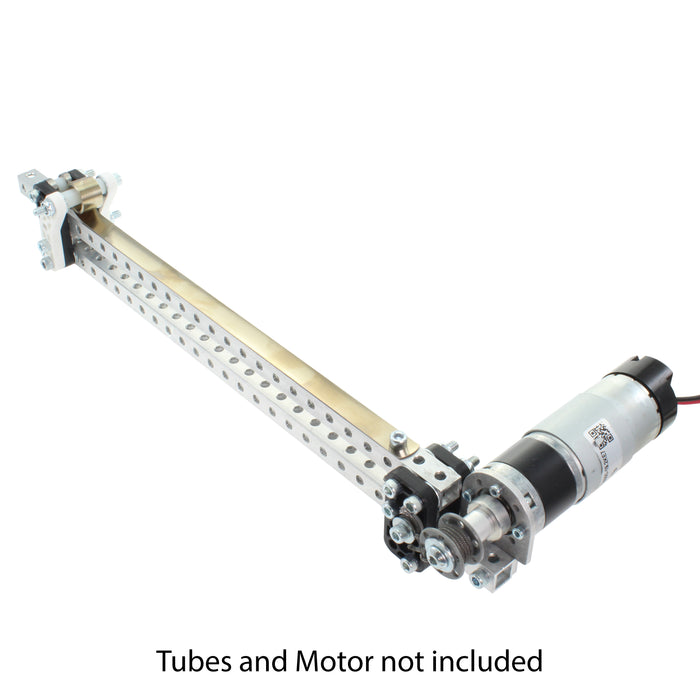

Robits Spring Extend Kit

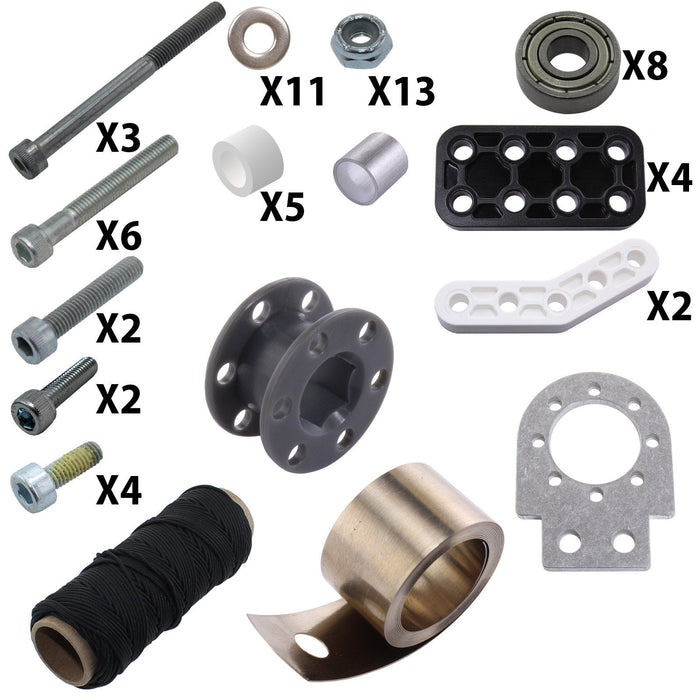

Included Items:

• 6 - 10-32 x 1.5 in. Socket Head Cap Screw (am-1014)
• 11 - #10 Flat Washer (am-1026)
• 2 - 10-32 x 0.75 in. Socket Head Cap Screw (am-1047)
• 3 - 10-32 x 2 in. Socket Head Cap Screw (am-1049)
• 2 - 10-32 x 1 in. Socket Head Cap Screw (am-1056)
• 13 - 10-32 Nylock Jam Nut (am-1063)
• 4 - M3-0.5 x 8 mm Socket Head Cap Screw with Thread Patch (am-1500)
• 1 - 0.450 in. ID 0.500 in. OD 0.500 in. Long Aluminum Spacer (am-1699)
• 5 - 0.194 in. ID 0.375 in. OD 0.250 in. Long Nylon Spacer (am-1700)
• 1 - Power String, 1.4MM, 100' Spool (am-3159)
• 1 - 0.5 in. Wide 30 in. Long Constant Force Spring (am-4666)
• 8 - 5 mm ID 13 mm OD Shielded Bearing (695ZZ) (am-4724)
• 4 - Robits 2 x 4 Plate Gusset (am-5006_2x4)
• 2 - Robits 150° Angle Gusset (am-5010_150)
• 1 - Robits Motor Mount Bracket (am-5012)
• 1 - Robits Spool (am-5027)
• 1 - 0.194 in. ID 0.375 in. OD 1.000 in. Long Nylon Spacer (am-1696)
