Robits Beams

by AndyMark

$1.90 USD - $2.70 USD

$1.90 USD

$1.90 USD - $2.70 USD

$1.90 USD - $2.70 USD

$1.90 USD

These Gussets are used to connect components within the Robits platform.

Quantity

SKU

Description
Specifications
Documentation

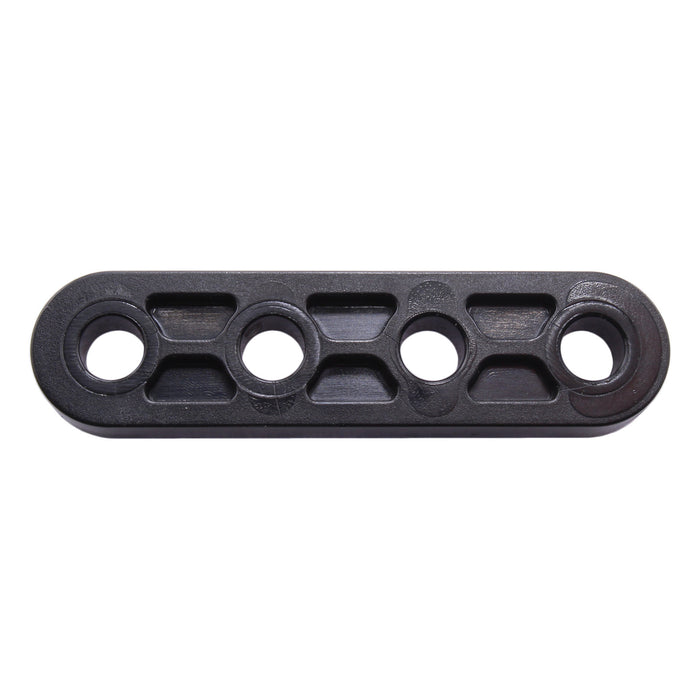

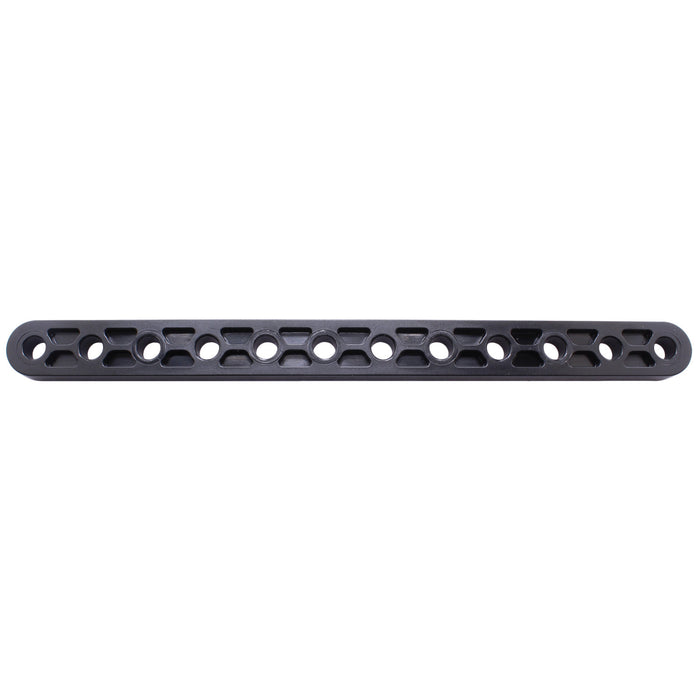

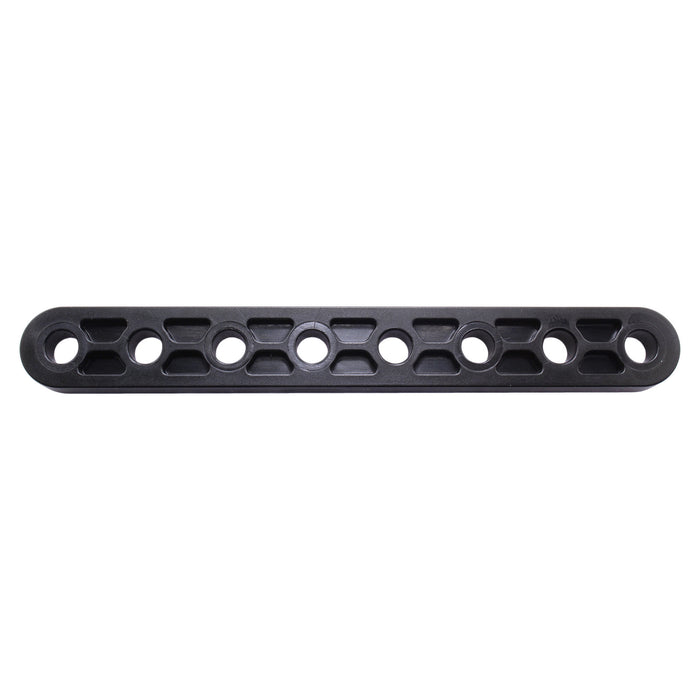

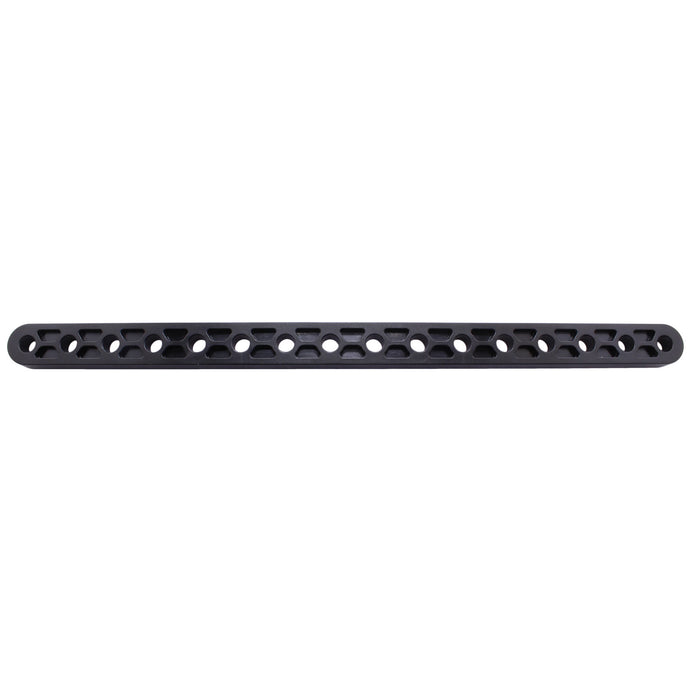

Beams are lightweight single-grid gussets that are perfect for linkages and structural attachment. These are one of the most basic building blocks of the Robits building system. You can never have enough!

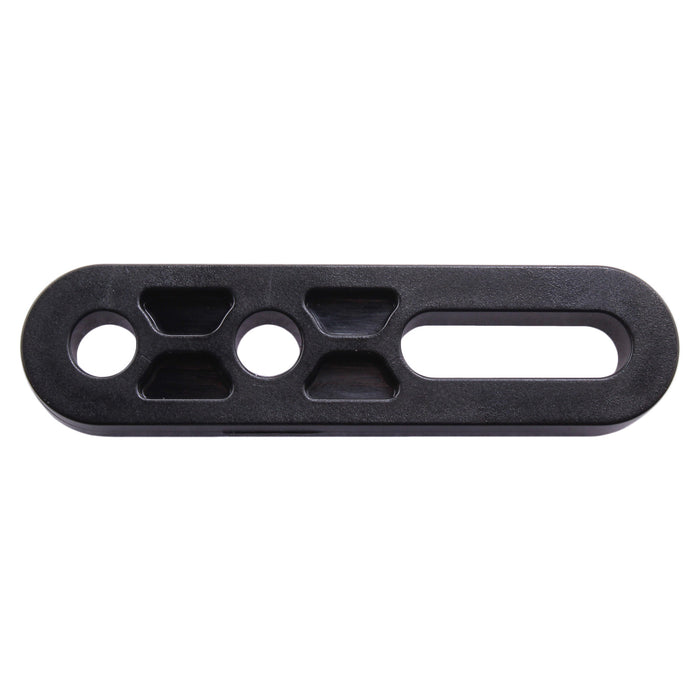

Slotted beams feature two holes that are connected. This can help with securing something to your robot that is not on the Robits grid pattern, or at an odd angle.
- Hole Size: 0.201 in.
- Hole Spacing: 0.50 in.
- Material: Polycarbonate
- Thickness: 0.25 in.
- Width: 0.50 in.
CAD Files
am-5011_slot RoBits Slotted Beam.STEP
am-5011_1x8 RoBits 1x8 Beam.STEP
am-5011_1x4 RoBits 1x4 Beam.STEP
am-5011_1x16 RoBits 1x16 Beam.STEP
am-5011_1x12 RoBits 1x12 Beam.STEP
Layout Prints
am-5011_slot RoBits Slotted Beam.pdf
am-5011_1x8 RoBits 1x8 Beam.pdf
am-5011_1x4 RoBits 1x4 Beam.pdf
am-5011_1x16 RoBits 1x16 Beam.pdf
am-5011_1x12 RoBits 1x12 Beam.pdf
