REV Robotics More Board v2.0

This product is currently unavailable for purchase.

v2.0 Updated with these features! Added 5V and 3.3V power indicator LEDs. Adjusted 5V rail routing to fully isolate rail when jumper is removed. Added MXP pass-through connector Silk...Read More

View Full Details

Product Overview

v2.0 Updated with these features!
  • Added 5V and 3.3V power indicator LEDs.
  • Adjusted 5V rail routing to fully isolate rail when jumper is removed.
  • Added MXP pass-through connector
  • Silk screen improvements

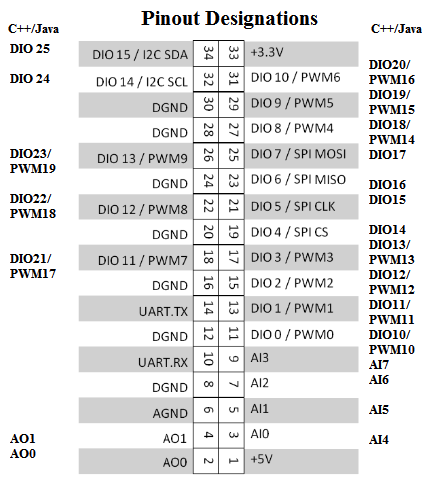

The REV Robotics More Board is a passive expansion board designed for the roboRIO MXP (myRIO Expansion Port). Every MXP signal is broken out to screw terminals and common 3-pin headers, effectively doubling the available Analog and Digital IO/PWM ports on the roboRIO. Drive more motors and connect more sensors with the More Board.

More information can be found at https://www.revrobotics.com/more-board-v2-0/

Specifications

  • Product Lifecycle: <a href='https://www.revrobotics.com/rev-11-1100/' target='_blank'>available at REV Robotics</a>
  • Size: 4x4 in.

Documents

Don't see what you need?

Returns

Returns are not accepted for this product.

4 reviews

  1. star star star star star 5 out of 5 stars

    More Board

    great addition to the roborio

    AC from Sussex

  2. star star star star empty_star 4 out of 5 stars

    Review

    4 Stars

    MV from Northwood

  3. star star star empty_star empty_star 3 out of 5 stars

    Seems to work as advertised.

    The Rev Robotics More Board seems to work as advertised. After waiting 10 days to receive the expansion board, our FRC team got it installed and operating very quickly. The team is happy with the capabilities and performance so far. Hopefully we won't have to order a replacement because the item is out of stock and with AndyMark's shipping delays, would not be able to get another one any time soon.

    RH from Oak Harbor

  4. star star star star star 5 out of 5 stars

    "Review"

    "great product"

    Ay
