Resistive Grounding Strap

by AndyMark

$5.30 USD - $5.30 USD

$5.30 USD

$5.30 USD

$5.30 USD - $5.30 USD

$5.30 USD

This Grounding Strap has 470Ω resistor to prevent high-current discharges and safely ground a robot's metal frame.

Description
Specifications
Documentation

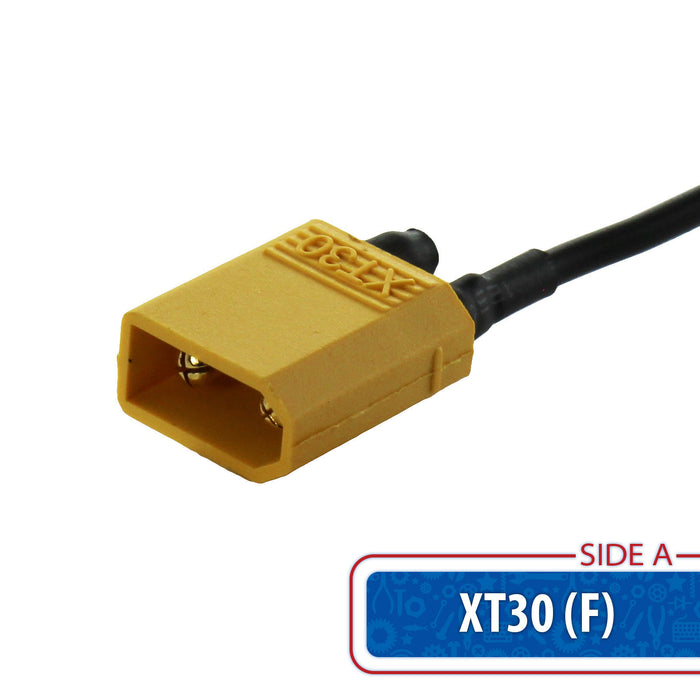

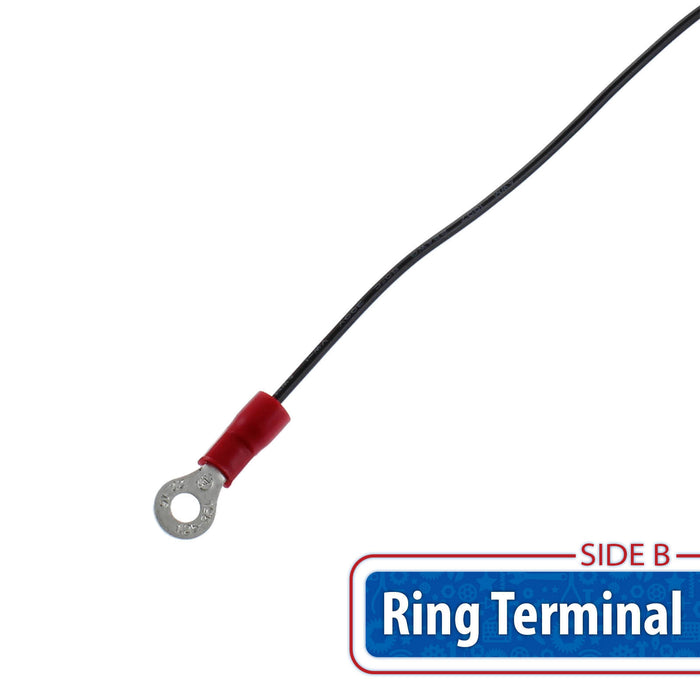

The ring terminal should be attached to a metal surface using a #10 nut and bolt while the XT30 end is plugged into a free port on the control system.
- Length: 12 in.
- Resistance: 470 ohms 1/2 W 5%
- Wire Gauge: 22 AWG
CAD Files
am-4648a XT30 Resistive Grounding Strap.STEP
Layout Prints
am-4648a XT30 Resistive Grounding Strap.pdf
