Limit Switch
$1.50 – $4.00
Limit switches are activated when an object makes physical contact with the actuator and they provide an electrical response based on that action. This single pole double throw limit switch can be ...Read More
Product Overview
Limit switches are activated when an object makes physical contact with the actuator and they provide an electrical response based on that action. This single pole double throw limit switch can be wired normally closed or normally open.

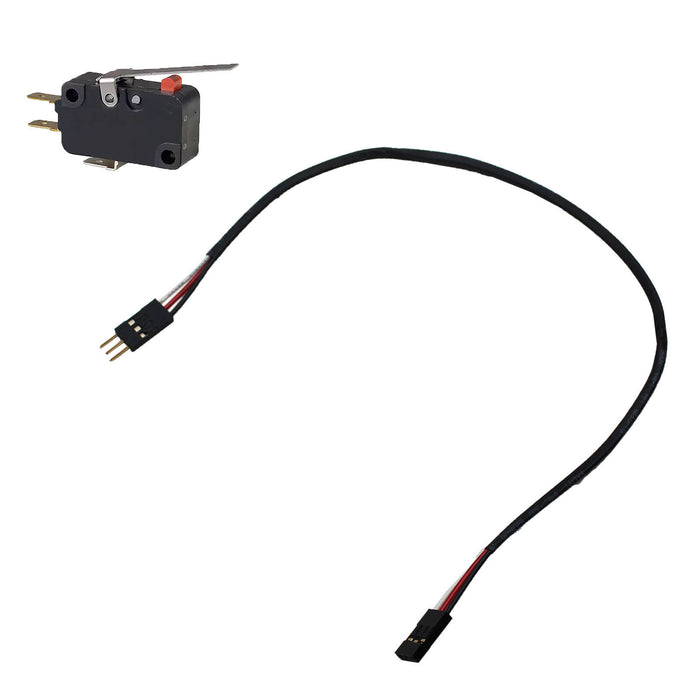

Accessory Option Also Includes:
- 1 - 3-Wire PWM 12 in. (am-0693) (Cut one end off and solder to the terminals on the switch)
Specifications
- Contact Form: Single Pull Double Throw
- Current Rating: 16A AC
- Hole Pattern: 3.1 mm Holes
- Maximum Operating Force: 1.23 N
- Termination Style: Solder, Quick Connect - 0.187 in. (4.7 mm)
