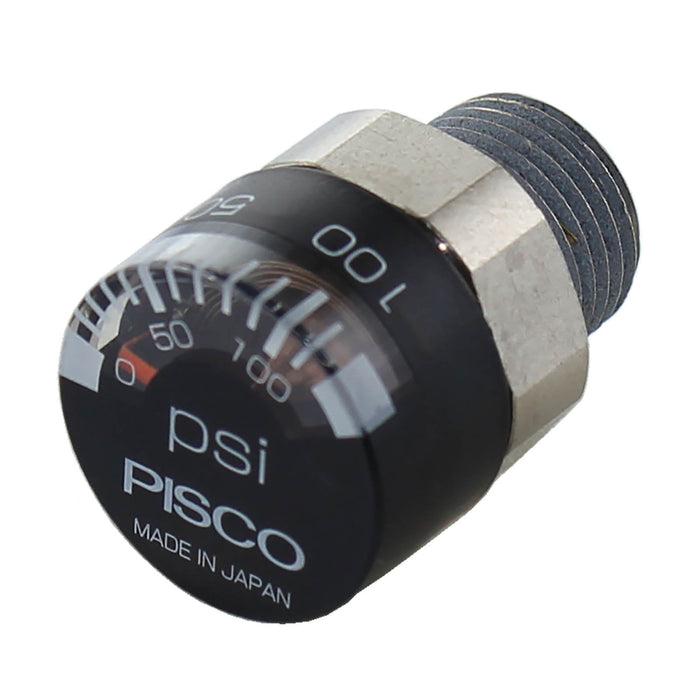

Pressure Gauge with 1/8 in. NPT Fitting

am-4222

$13.00

This is a miniature pressure gauge with 1/8 in. NPT threads perfect for lightweight pneumatic systems where you need to mount a pressure gauge to a hard fitting. This pressure gauge is significantl...Read More

0 reviews

Write a Review

View Full Details

Product Overview

This is a miniature pressure gauge with 1/8 in. NPT threads perfect for lightweight pneumatic systems where you need to mount a pressure gauge to a hard fitting. This pressure gauge is significantly reduced in volume and weight compared to the classic gauges used in FRC. This lets you take advantage of every last cubic inch and ounce on your robot.


NPT THREAD
Note: NPT Thread Size is a nominal pipe size and does not represent the actual diameter
Pipe Size (NPT) 1/8 1/4 3/8 1/2
Thread Size (NPT) 1/8-27 1/4-18 3/8-18 1/2-14
Thread Measuring Diameter 3/8 Inch 1/2 Inch 5/8 Inch 3/4 Inch

Specifications

  • Height: 0.83 in
  • Operating Pressure: 0-150 psi
  • Port(s): 1/8 in. NPT
  • Pressure Range : 0-116 psi
  • Width: 0.59 in
