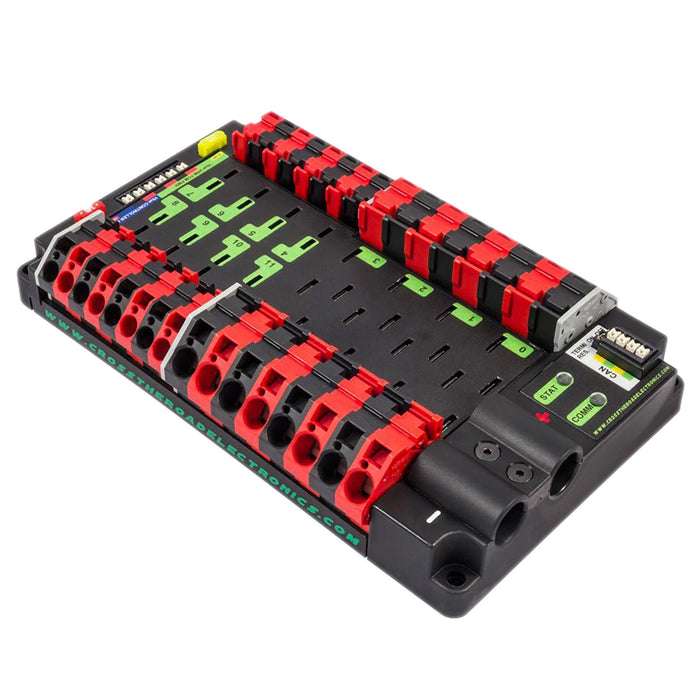

Power Distribution Panel

am-2856

$206.00

NOTE: This product is not included in any Sales or Discounts. This is the PD panel being used in the 2015 FIRST Robotics Competition Kit of Parts. The Power Distribution Panel (PDP) from Cros...Read More

View Full Details

Product Overview

NOTE: This product is not included in any Sales or Discounts.

This is the PD panel being used in the 2015 FIRST Robotics Competition Kit of Parts.

The Power Distribution Panel (PDP) from Cross the Road Electronics is the latest DC power interface for competition robotics. The PDP uses CAN to connect directly to the roboRIO and allows for individual current monitoring on each channel.

Replacement 20 Amp Mini Yellow Fuse (am-3605) & 10 Amp Mini Red Fuse (am-4053) are available as well.

Please contact Cross the Road Electronics support@ctr-electronics.com for warranty issues, Return Merchandise Authorization (RMA) , or assistance for this product.

For the most up to date documentation on this product, please see: https://www.ctr-electronics.com/pdp.html#product_tabs_technical_resources

Inputs: Outputs:
  • 12V DC output
  • (8) 40A Protected Channels (12V)
  • (8) 20A / 30A Protected Channels (12V)
  • (1) 20A Protected Channel (shared between PCM and VRM)
  • (1) 10A Protected Channel (roboRIO)
  • (1) CAN Bus (provides feedback to roboRIO)
