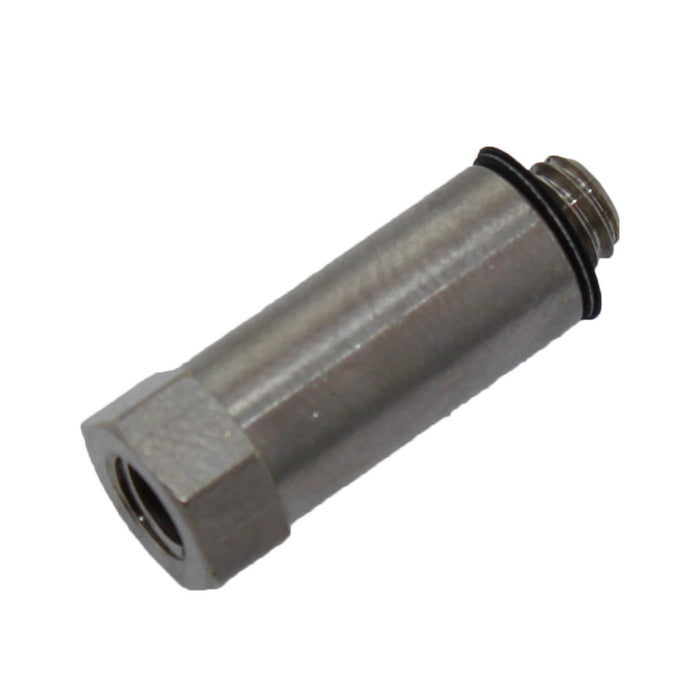

PISCO Extension Screw Adaptor

am-4004

$2.00

This pneumatic fitting extension is used on the CDK valves, when they are mounted on the CKD Manifold (am-3982).  It screws in to an M5 fitting on the CKD valve.  One end is a male M5 thread while ...Read More

0 reviews

Write a Review

Product Overview

This pneumatic fitting extension is used on the CDK valves, when they are mounted on the CKD Manifold (am-3982).  It screws in to an M5 fitting on the CKD valve.  One end is a male M5 thread while the other is a female M5 thread.

Pisco manufacturer part #: PFM5-M5L

Specifications

  • Finish: Zinc Plated
  • Fitting Connections: M5 Thread
  • Length: 0.9 inch (23 mm)
  • Material: Brass
  • Maximum Pressure: 125 psi
  • Weight: 0.01 Lbs
