With the Twin Turbo, you use two motors which means double the torque and double the power.
SKU am-3450
Usually Ships in 3 to 5 Business Days
  • Description
  • Gearbox Ratios
  • Specifications
  • Documentation

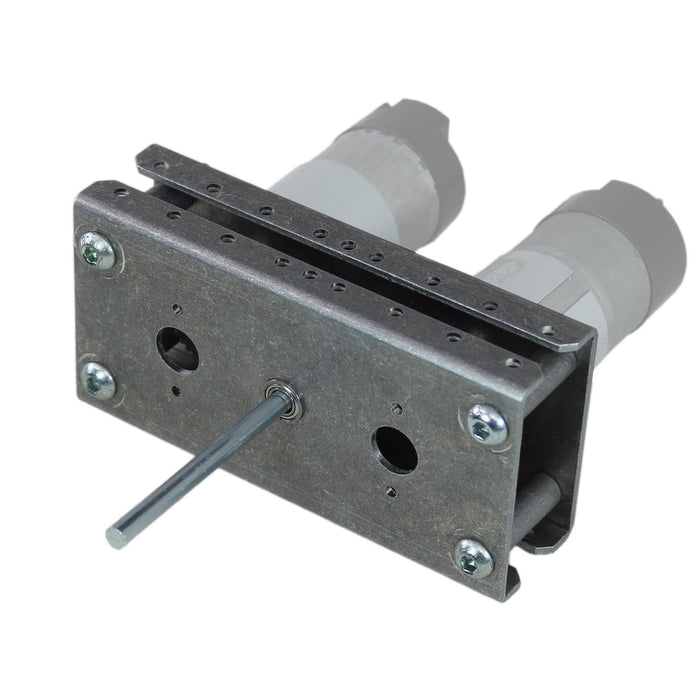

  • The PicoBox Twin Turbo is a unique member of the PicoBox family. Instead of installing a NeveRest gearmotor, you simply install the bare motor without the gearhead! This allows you to use the motor close to its free speed for very high-speed flywheels and intakes.

    The gearbox plates feature two holes for face-mounting a NeveRest motor. Flanges on the top and bottom feature a 16 mm hole pattern with clearance holes for 6-32 screws for easy integration with our TileRunner drive system and other building systems commonly seen in FIRST Tech Challenge. The Twin Turbo includes 35, 40, and 45 tooth pinion and cluster gears, allowing you to pick between three different ratios.

    Individual Components that make up this Assembly:

    • 4 - 1/4-20 Nylock Jam Nut - Bulk Qty (am-1102)
    • 4 - M3-0.5 x 6 mm SHCS (am-1254)
    • 4 - 6-32 0.5 in. Hex Head Screw (am-1436)
    • 4 - 1/4-20 x 1.75 in. Hex Head Screw
    • 1 - Red Tacky Grease, 14.2 gram (am-2768)
    • 2 - 35T NeveRest Pinion (am-3201)
    • 2 - 40T NeveRest Pinion (am-3202)
    • 2 - 45T NeveRest Pinion (am-3203)
    • 2 - 6x12x4 Flanged Bearing (am-3377)
    • 4 - PicoBox Spacer (am-3406)
    • 1 - 35T Gear for PicoBox (am-3408)
    • 1 - 40T Gear for PicoBox (am-3407)
    • 1 - 45T Gear for PicoBox (am-3409)
    • 2 - PicoBox Twin Turbo Plate (am-3439)
    • 2 - 6 mm Collar Clamp, 20 mm OD, 5 mm Width (am-3473)
    • 1 - 12 mm x 6.15 mm Aluminum PicoBox Turbo Spacer (am-3481)
    • 1 - 6 mm D Bore Single Boss Nub (am-3443a)
    • 1 - 6 mm D Shaft, 100 mm (am-3226-100)
    • 1 - 1.5 mm L-Key Allen Wrench (am-3690)
    If you need the output shaft to be a 1/2 in. Hex, check out the 6 mm D to 0.5 in. Hex-Shaft Adapter (am-3744a)

  • Please contact support@andymark.com if you do not see a Ratio Table
    • Motor Input: NeverRest
    • Motor Quantity: 1, 2
    • Overall Depth With Motor: ~ 173 mm
    • Overall Height: 64 mm
    • Overall Length: 128 mm
    • Ratio: 1:0.78, 1:1, 1:1.28
    • Weight: 1.215 lbs.

  • CAD Files

    am-3450 PicoBox Twin Turbo REV2.STEP

    Guides

    am-3450 PicoBox Twin Turbo User Guide.pdf

    Layout Prints

    am-3450 PicoBox Twin Turbo REV2.PDF
