PicoBox MEO Plate

am-3475

$7.00

The PicoBox MEO plate makes up the sides of a PicoBox MEO (am-3615) gearbox. The plate features mounting holes on a 16mm grid for attaching the gearbox plate to structuring components or a TileRunn...Read More

0 reviews

Write a Review

Product Overview

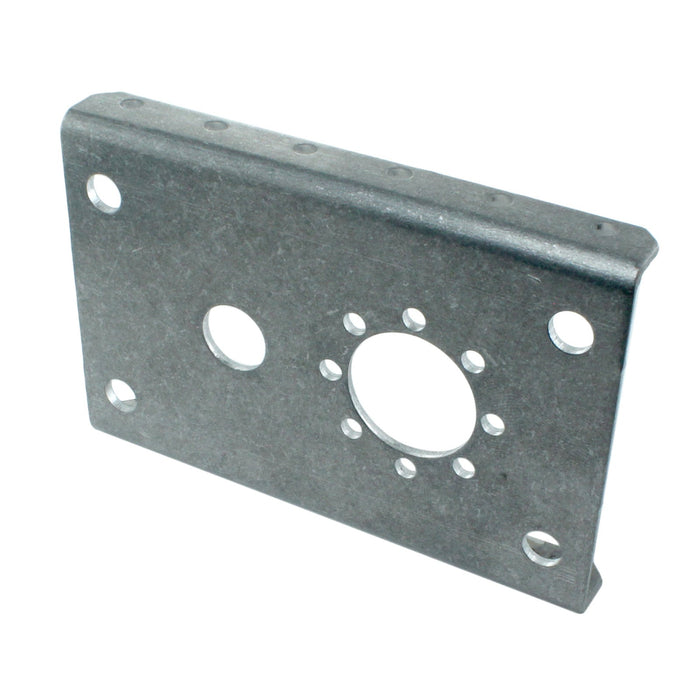

The PicoBox MEO plate makes up the sides of a PicoBox MEO (am-3615) gearbox. The plate features mounting holes on a 16mm grid for attaching the gearbox plate to structuring components or a TileRunner. This plate mounts one of the NeveRest Orbital gearmotors. Motors mount with 4 m3-0.5 x 6mm socket head cap screws (am-1254).

Specifications

  • Material: 5052 Aluminum
  • Overall Depth: 0.36"
  • Overall Height: 2.52"
  • Overall Length: 3.78"
  • Weight: 0.09 lbs
