PG977 Gearmotor 0.50 in. Hex Output Shaft 977:1 Reduction

am-4270

$99.00

The Planetary Gearbox (PG) series of gearboxes and gearmotors feature robust planetary gearing inside paired with reliable motors. You asked for it, we delivered. This gearbox now features a 0.50 i...Read More

0 reviews

Write a Review

View Full Details

Product Overview

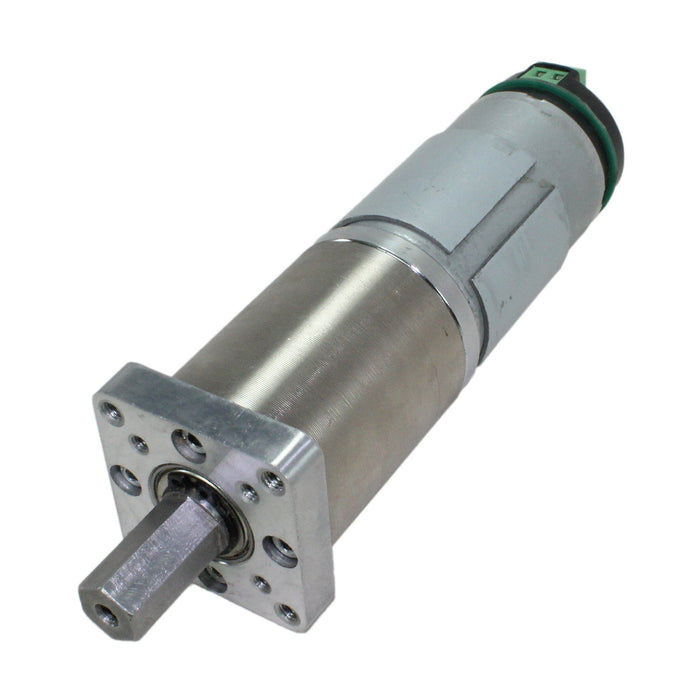

The Planetary Gearbox (PG) series of gearboxes and gearmotors feature robust planetary gearing inside paired with reliable motors. You asked for it, we delivered. This gearbox now features a 0.50 inch hex output shaft. This allows for easy attachment to 0.50 inch bore gears, sprockets, hubs, and other motion products without the need for adapters or keys. The PG977 Gearmotor includes a 12V 775 class motor with an integrated 5V quadrature encoder, simplifying feedback control.

Specifications

  • Free Speed: 6.4 RPM
  • Lubrication: Pre-lubricated Gears
  • Material: Steel
  • Mounting Geometry: Four 10-32 threaded holes on a 2 in. bolt circle
  • No Load Free Speed: 6.4 RPM

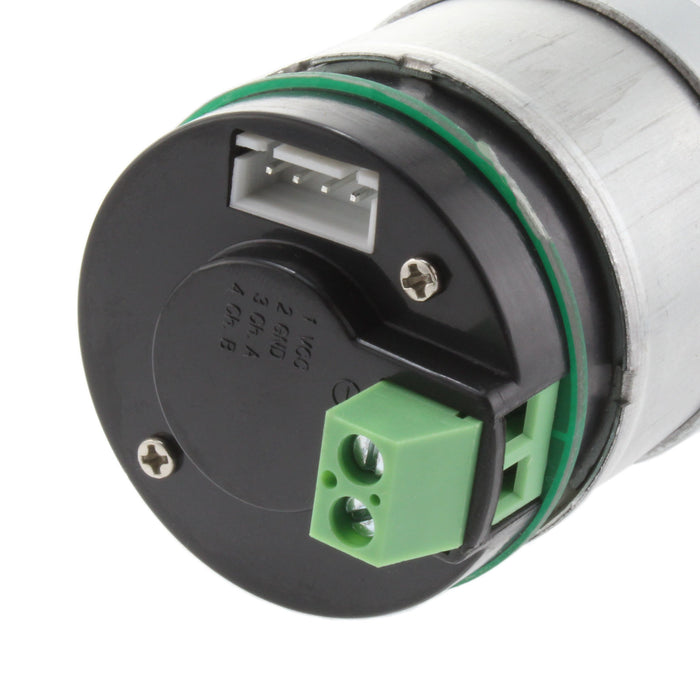

  • Pinout: Pin 1 - 5VDC, Pin 2 - Ground, Pin 3 - Output Channel A, Pin 4 - Output Channel B
  • Product Lifecycle: Other options available, <a href='/products/hex-pg-series-gearboxes-options?sku=am-4270'>see this product and other options here.</a>
  • Pulses Per Revolution: 7
  • Ratio: 977:1
  • Stall Torque: 117 ft-lbf
  • Voltage: Motor-12V DC, Encoder-5 Volt DC
  • Wattage: 27
  • Weight: 2.6 lbs
