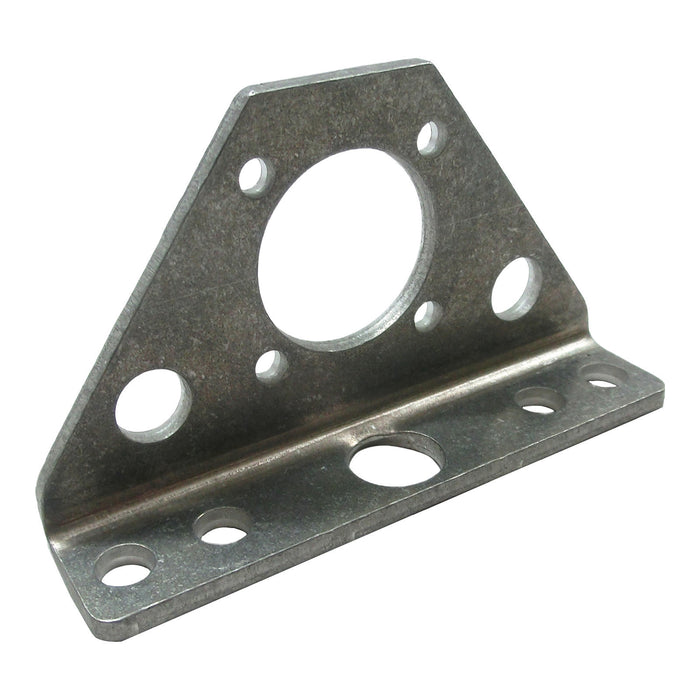

PG Mounting Bracket
This bracket can be used to mount a Hex PG gearbox to C-Channel or other structure with matching holes.
Product Overview
This bracket can be used to mount a Hex PG gearbox to C-Channel or other structure with matching holes.
Specifications
- Depth: 0.825 in.
- Height: 2.0 in.
- Length: 3.50 in.
- Material: 5052 Aluminum
- Product Lifecycle: replaced by <a href='/products/bearing-and-motor-mount-bracket'>am-4244</a>
- Thickness: 0.125 in.
- Weight: 0.07
Documents
Layout Print(s)
Don't see what you need?
Returns
Returns are not accepted for this product.
Recommendations
34 reviews
-
I used this bracket to mount a PG188 motor to 8...
I used this bracket to mount a PG188 motor to 80-20 extrusion with 5/16 socket headed bolts, with standard 15/32 head diameter, through the 3/8 holes with centering bushings. The outer diameter of the bolt head was too close to the gearbox/motor mount base and I had to machine the bolt heads for clearance to fit. Not sure how I would get a 3/8 bolt to fit.
-
"Review"
"5 stars"
-
Review
5 Stars
-
Review
5 Stars
-
Review
5 Stars
-
Mounting Bracket
SOLID! SOLID! Very good product!
-
Perfect size
Fits with no problems
-
Mates right up!
Mates right up to the PG71 motor and FRC Frame kit.
-
GearMotor Bracket
This bracket is made nicely and fits the motor well. The application to a higher torque PG188 motor needs to be considered carefully. We used this arrangement with a climber winch connected by a #35 roller chain. if the motor back end is not supported, the bracket easily bends.
-
Review
5 Stars
-
Fits Motor
5 Stars
-
Saves time from fabrication
Fits like a charm, works great.
-
Planetary GearMotor Bracket (am-2197)
excellent product and shipping
-
am-2197
4 Stars
-
PG Mounting bracket
This saves a lot of trial-and-error on the drill press trying to make your own.
-
Review
5 Stars
-
Review
5 Stars
-
Review
5 Stars
-
Review
5 Stars
-
Ok
Simple product, I think it is over priced for what it is. However for FRC teams time is everything so we pay for it.
-
Planetary GearMotor Bracket (am-2197)
Pretty hard to mess these up or to excel.
-
resolved
resolved
-
Review
5 Stars
-
Bracket
Fit perfect on the PG71 gearbox and motor. High quality.
-
Review
5 Stars
-
Perfect Way to Mount The Motors
There is no better way to mount these motors than using these brackets. They are perfectly build and sturdy.
-
will do exactly what i want
fine
-
Using this bracket makes mounting a snap!
Use of this bracket simplified construction of our robot. Much faster than designing a custom bracket.
-
Review
5 Stars
-
Review
5 Stars
-
pg bracket
5 Stars
-
A good bracket
This is a good strong bracket that perfectly fits the motor/gearboxes they are designed for.
-
Planetary GearMotor Bracket
Bracket works great to allow easy attachment of the gear motor to a robot frame. Wish we had this last year!
-
"review"
"nice bracket and easy to mount gearmotor"
