Peanut Drill Guide

am-4021

$18.00

Our Peanut Extrusion (am-3090-6) is named for the peanut-shaped rib in the middle that provides additional strength for attachments. For proper alignment to the connecting piece you want to hit th...Read More

0 reviews

Write a Review

Product Overview

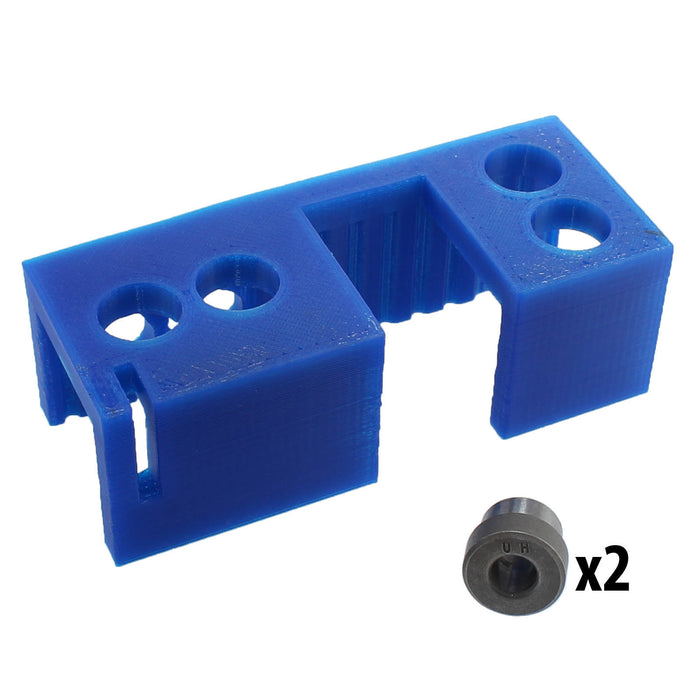

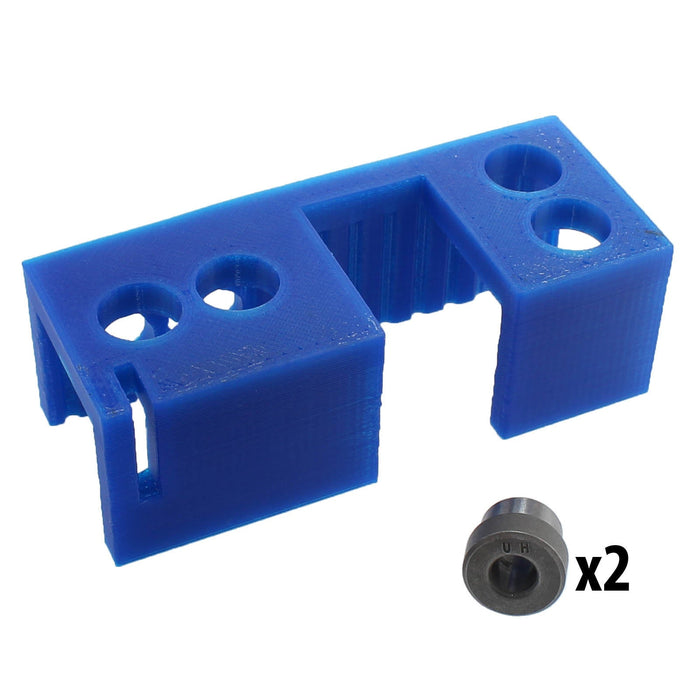

Our Peanut Extrusion (am-3090-6) is named for the peanut-shaped rib in the middle that provides additional strength for attachments. For proper alignment to the connecting piece you want to hit that rib--but we know that's not always easy when the surface is curved. This 3D-printed hole guide will help by clipping onto the peanut extrusion for better alignment. There are three sets of holes and 2 additional handy features. Two set of holes are for drilling a horizontal pair of holes. These holes will either be entirely through the internal "peanut" feature vertically or miss the "peanut" feature and peirce just the center ribs. There is also a pair of vertical holes for drilling either into the extruded holes at a 90 degree angle or for drilling on either side of the "peanut" feature. There is also a slot letting you see the end of the extrusion and lining up the horizontal set of holes with the end as well as a gap to let you clamp the guide in place while you drill.

We have two versions of the file. We recommend the version that features press-in drill bushings to help you drill even straighter. We also provided a file that doesn't use them.

Bushing Drill Guide (.stl)
No Bushing Drill Guide (.stl)
STEP file (.step) (right click save as)
Layout Print (.pdf)

Parts Included:
  • 1 - 3D printed Peanut Extrusion Guide
  • 2 - 0.5 in OD 0.25 in Long Steel Press Fit Bushing (am-1511)

Specifications

  • Bushing Material: Steel
  • Printed Material: PLA
