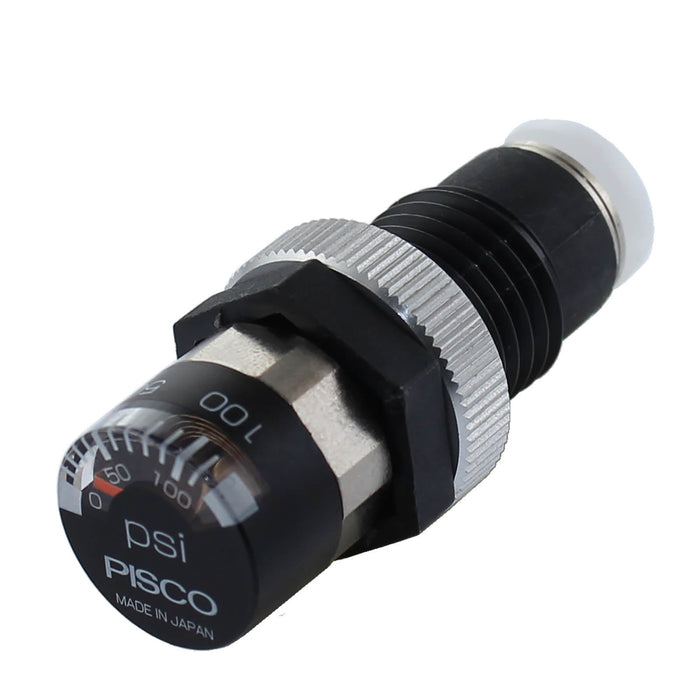

Panel Mount Pressure Gauge with 1/4 in. Press-in Tube Fitting

am-4224

$16.00

This is a miniature pressure gauge with a 1/4 in. push to connect fitting and a threaded body with nut to install the gauge through a flat surface. It is perfect for lightweight pneumatic systems w...Read More

View Full Details

Product Overview

This is a miniature pressure gauge with a 1/4 in. push to connect fitting and a threaded body with nut to install the gauge through a flat surface. It is perfect for lightweight pneumatic systems where you need to mount a pressure gauge to an instrument or controll panel for a clean professional look. This pressure gauge is significantly reduced in volume and weight compared to the classic gauges used in FRC. This lets you take advantage of every last cubic inch and ounce on your robot.

Specifications

  • Height: 1.67 in
  • Operating Pressure: 0-150 psi
  • Port(s): 1/4 in Female Push-in
  • Pressure Range: 0-116 psi
  • Width: 0.75 in

Documents

Don't see what you need?

1 review

  1. star star star star star 5.0 out of 5 stars

    Great product for my project. I wanted a pressu...

    Great product for my project. I wanted a pressure gauge for a project and was very limited for space. This gauge worked perfectly.
