NI roboRIO 2.0
am-3000a
$485.00
NOTE: This product is not included in any Sales or Discounts. Customers who are not affiliated with FIRST teams are required to purchase this product through NI directly (Options available here) ...Read More
This item is currently out of stock
Estimated back in stock: Dec 18, 2024
Be of the first to know when this item becomes available
Sign up for a notification when available
Product Overview

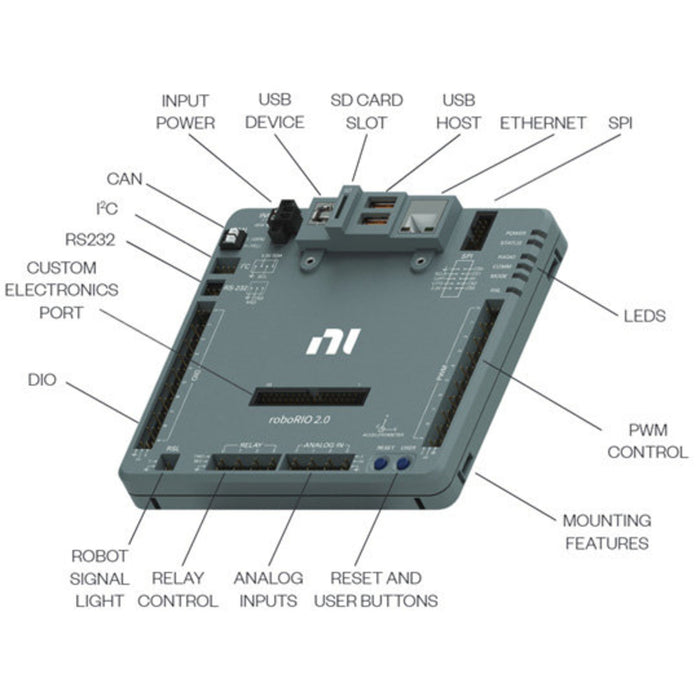

The NI roboRIO 2.0 is new for the 2022 FIRST Robotics Competition. The most up to date information, and technical specifics, will be published by NI when they become available. For more roboRIO support for FIRST Robotics Competition teams, visit ni.com/frc
This device is designed specifically with FIRST in mind. The announcement of the roboRIO 2.0 on the FIRST Robotics Competition Blog, discusses all the new features to expect.
If you need any assistance with your roboRIO, or have RMA needs, please use this link to contact NI through the FIRST Support Forums: (https://forums.ni.com/t5/Support/ct-p/Support?profile.language=en)
Once there, click on "Troubleshooting Hardware" and then "Start A Topic":
F.A.Q.
- Will my FRC Team receive the roboRIO 2.0 in the 2024 KOP?
- Is the roboRIO still legal for FRC?
- What programming languages does roboRIO 2.0 support?
- It supports LabVIEW, Java, and C++.
- How is roboRIO 2.0 different from roboRIO 1.0?
- New features are discussed in the FIRST Robotics Competition Blog
- Can non FRC customers purchase a roboRIO 2.0?
- FRC teams, affiliates, partners, and organizers can purchase a roboRIO 2.0 from AndyMark provided they will be used to support FRC teams or competitions.
- Contact NI with inquiries for non-FRC uses
- Can I get more information on the roboRIO 2.0?
- NI will post information on the NI website as it becomes available
- We lost our power connector, where can I get more?
- The Sauro Connector (CTF020V8) is the same one included with the roboRIO 2.0.
- AndyMark recommends the Phoenix Push-in Spring Connector (am-2076a) as a replacement
- If I have a roboRIO 1.0 with an issue can I get a roboRIO 2.0 as replacement?
- At this time the version of roboRIO you have is what will be replaced if NI deems a replacement is needed. You will need to start by contacting NI through the FIRST Support Forums
- Is an SD card included with the roboRIO 2.0?
- Yes, a 4GB microSD card comes preinstalled
Specifications
- DDR3 Memory: 512 MB
- Nonvolatile Memory: 16 MB (not accessible) / 4GB microSD (accessible)
- Processor speed: 866 MHz
Documents
Returns
Returns are accepted within 30 days of purchase.
View our return policy here.
Recommendations
5 reviews
-
Not a game-changer, but a solid upgrade
The roboRIO 2.0 retains almost all the features of the 1.0 version. Most significant in the new version is the micro SD card, which replaces the USB retention screws. Having the robot code on the SD card is pretty handy and makes for quick code changes. The processor is supposed to be much faster, almost 2X, but we haven’t seen that yet. The NavX works fine in the MXP port, the CAN bus works as expected, and the PWM and DIO ports work, too. No messy surprises so far.
-
Our team needed to order a new robo rio 2.0 but...
Our team needed to order a new robo rio 2.0 but it was out of supply. We requested an email when it is available. We received the email and ordered it asap. It took us 3 days to get it and we are pleased. Thank you.
-
RoboRio purchase
AndyMark greatly improved shipping times this season.
-
More powerful than 1.0
The RobRIO 2.0 has a faster processor. The storage memory is all contained in the microSD card. There is much more permanent storage than the 1.0. The only way I could change the firmware was by programming the SD card. One feature is that you can have more than one SD card programmed. You can quickly change the SD card to change the loaded program. I am looking forward to the extra memory and the processor speed for image processing.
-
You will need a new version of the Imaging tool to use this device
The new imaging tool has not been released yet. To use this device now you need access to the Beta version of the 2022 Game Tools so that you can image it.
