navX2-Micro Navigation Sensor

$95.00 – $109.00

Select option to view product code

This item is restricted for shipment in some countries. Please check international shipping restrictions before ordering. The navX-2 Micro is the greatest sensor for orientation in competitive robo...Read More

0 reviews

Write a Review

View Full Details

Product Overview

This item is restricted for shipment in some countries. Please check international shipping restrictions before ordering.

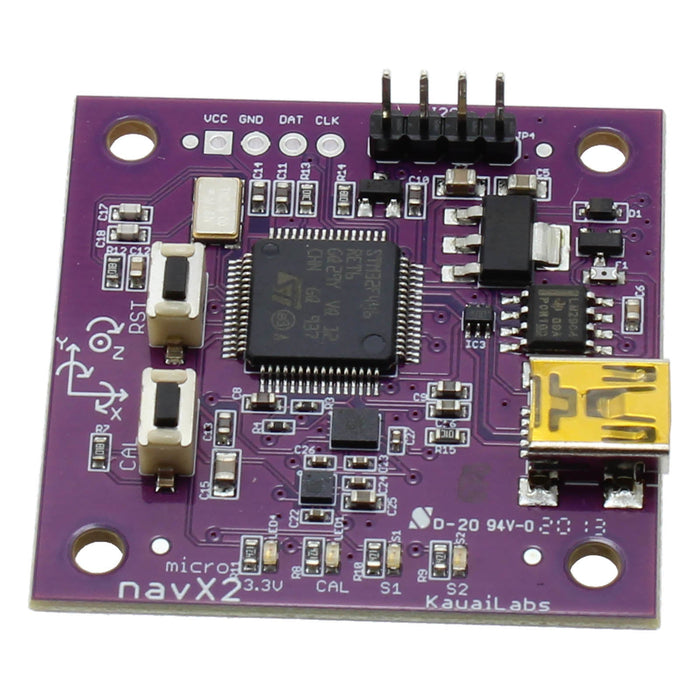

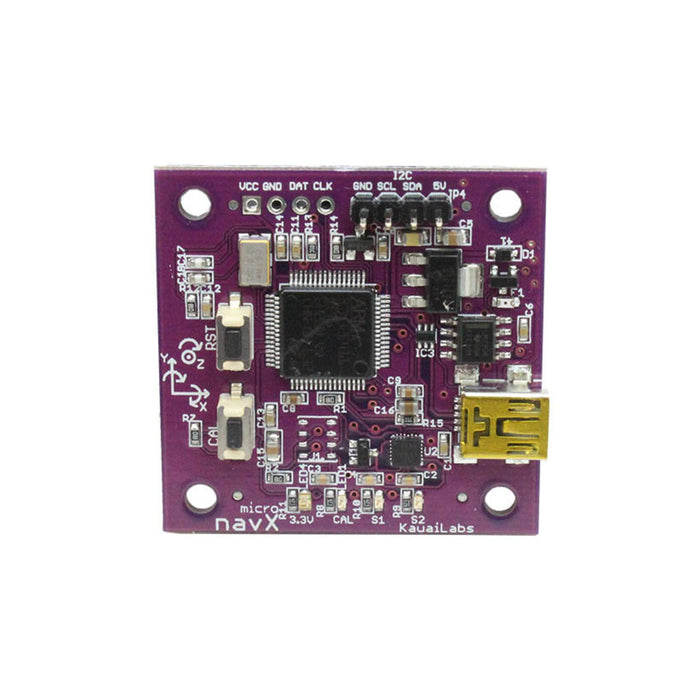

The navX-2 Micro is the greatest sensor for orientation in competitive robots. navX2-Micro is a second-generation 9-axis inertial/magnetic sensor and motion processor. Designed for plug-n-play installation onto robots such as those used in the FIRST Technology Challenge (FTC) and the FIRST Robotics Challenge (FRC), navX2-Micro helps build better robots by adding sophisticated navigation capabilities. Significant improvements over the classic navX-Micro allow for more accuracy, decreased yaw drift, and faster boot time. navX-2 Micro includes software algorithms for enhanced sensor calibration as well as KalmanFilter-based data fusion combining gyro, accelerometer, and magnetometer data into a 9-axis heading and high-quality magnetometer calibration including magnetic disturbance detection.
In addition to being an Inertial Measurement Unit, navX-Micro capabilities are referred to within the aerospace industry as an “Attitude/Heading Reference System” (AHRS). Kauailabs brings this high-tech AHRS capability to FIRST teams – to use, learn, and explore. navX-Micro is a key component of Kauailabs’ ongoing efforts to make state-of-the-art navigation technologies used in drones and autonomous vehicles (e.g., the Google Car) available to robotics students and enthusiasts as low-cost, open-source products.

Improvements over navX "Classic":
navX2-Micro features a new set of IMU & Magnetometer sensors with superior sensor specifications to those on the MPU-9250 sensor. This board has a faster 180Mhz microcontroller and an optimized startup time at 5 seconds versus 15 seconds. In addition, it has a completely new Kalman Filter-based Sensor Fusion algorithm running internally at a blazing fast 416Hz.

 Individual Components in Bundle:

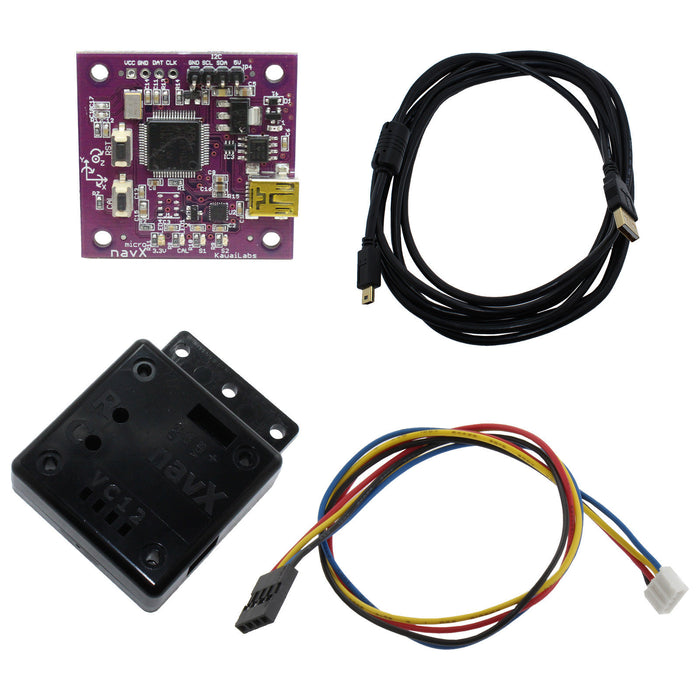

  • 1 - navX-2 Micro Navigation Sensor (am-3554a)
  • 1 - USB A to Mini B 2.0 Cable 6 Ft Long (am-4015)

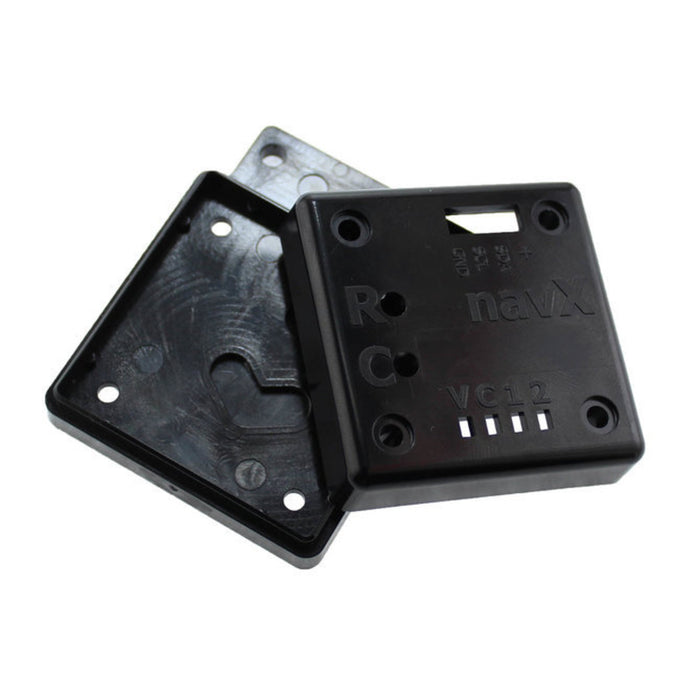

  • 1 - navX-2 Micro Navigation Sensor Case (am-4025)
  • 1 - 4-Pin JST PH to Molex Cable (am-4363)
  • 3-axis Magnetometer,LIS2MDL
  • 32-bit ARM processor, ST Micro LSM6DSM IMU
  • KalmanFilter-based data fusion
Sophisticated Motion Processing:
  • High Accuracy, Low-latency Yaw, Pitch and Roll Angles calculated by real-time Kalman Filter running at 416Mhz
  • Factory Accelerometer Calibration, Automatic Gyroscope Calibration
  • Quaternions and Gravity-corrected Linear Acceleration and Velocity Measurements
  • High-sensitivity Motion Detection
  • Tilt-compensated Compass Heading
  • 9-Axis absolute heading w/Magnetic disturbance detection

Inertial/Magnetic Measurement Unit:

  • Configurable Update Rate from 4 to 200Hz
  • Access to Raw Data from Gyroscopes, Accelerometers, and Magnetometers

Easy to Use:

  • Plug-n-Play connection on FTC and FRC robots via I2C and USB interfaces
  • 5V and 3.3V-compatible I2C Signaling
  • Can be powered by either 5V or 3.3VDC
  • Connection to Windows PC via USB Cable
  • FTC and FRC Software libraries and sample code
  • Support for Mounting in horizontal, vertical and even upside-down configurations via Omnimount
  • Tools for Magnetometer Calibration
Warranty: For Studica/Kauai product warranty replacements or assistance with navX products, please contact Studica via email,


  • ADC Resolution: 16 Bits
  • Accelerometer Sensitivity: +/- 16g
  • Current: 50 Milliamps
  • Gyro Sensitivity: +/- 2000 Degrees per Second
  • Interface: I2C, USB Mini-B
  • Magnetometer Angular Accuracy: +/- 2 Degrees
  • Magnetometer Sensitivity: 1.3 Gauss
  • Magnetometer Update Rate: 4 Hz
  • Pitch/Roll Angular Accuracy: +/- 1.5 Degrees
  • USB/I2C Update Rate: 4-200 Hz
  • Voltage: 5V DC
  • Yaw Angle Accuracy: ~2 Degrees per Hour when Still, ~1 Degree when Moving


Returns are accepted within 30 days of purchase.
View our return policy here.
