Micro Servo SG90

am-4343

$3.00

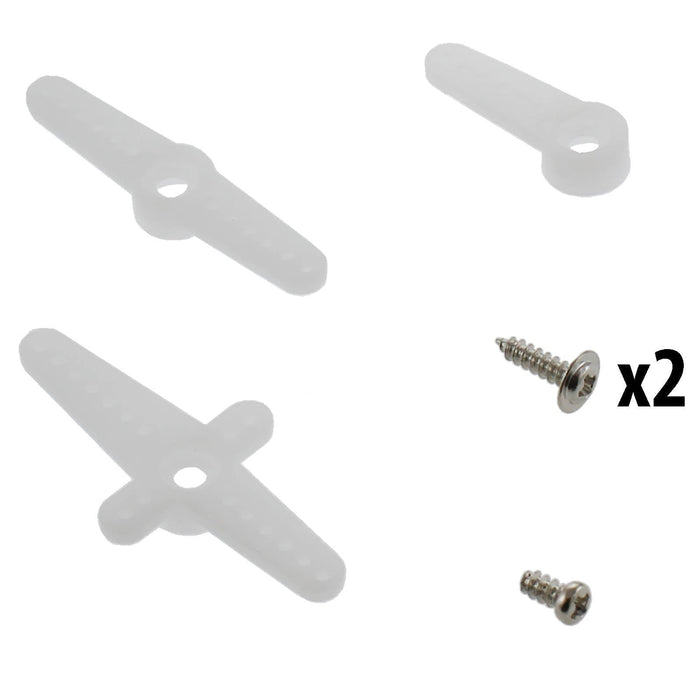

This servo is a great small form factor option for your PWM controlled servo needs. Put it in your helicopter, boat, or robot arm! Each servo comes with three servo horns and hardware.

0 reviews

Write a Review

View Full Details

Product Overview

This servo is a great small form factor option for your PWM controlled servo needs. Put it in your helicopter, boat, or robot arm! Each servo comes with three servo horns and hardware.

Specifications

  • Angular Range: 180 Degrees
  • Free Speed: 0.09 sec / 60 Degree @ 4.8VDC
  • Length: 23 mm
  • Material: Gears are all Nylon
  • Speed: 0.3 Seconds/S
  • Stall Torque: 17.5 oz/ in @ 4.8 VDC
  • Voltage: 4.2-6 VDC
  • Weight: 9 Grams
  • Width: 12.2 mm
