MA3 Absolute Encoder with Cable - am-2899 - migrated

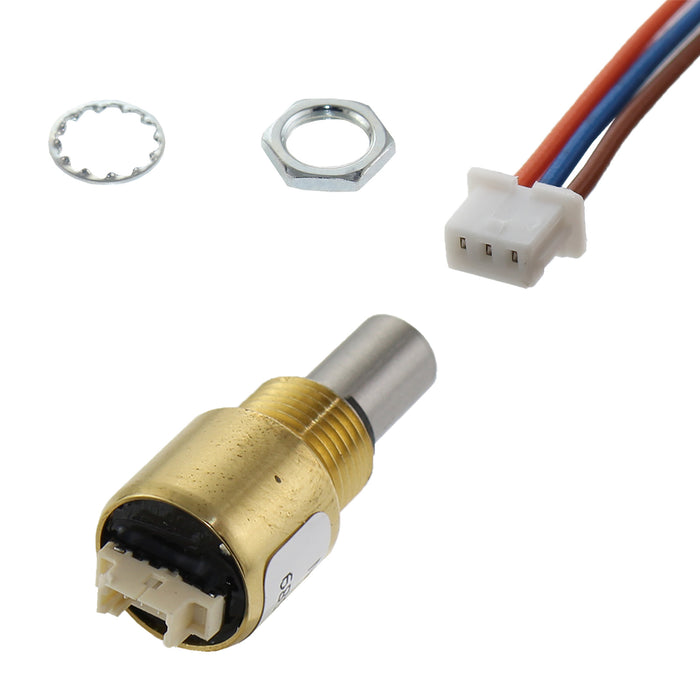

MA3 Absolute Encoder with Cable

by AndyMark
Save 36% Save 36%
$70.00 USD
$70.00 USD - $70.00 USD
$70.00 USD
$45.00 USD
$45.00 USD - $45.00 USD
$45.00 USD
The MA3 is a miniature rotary absolute shaft encoder that reports the shaft position over 360 with no stops or gaps.
SKU am-2899
  • Description
  • Specifications
  • Documentation
  • This kit contains one encoder and one encoder cable. This is the Analog output version. Half-Turn(180*) = 2.5 V. This version provides a slight bit of drag torque, but it is very minimal. Connecting to the MA3 is simple. The 3-pin high retention snap-in 1.25mm pitch polarized connector provides for +5V, output, and ground.

    Included Items:

    • 1 - CA-MIC3-W3-NC 3-Pin Encoder Cable (am-3083)
    • 1 - MA3-A10-250-N Absolute Encoder (am-2898)
      • Encoder
      • Nut
      • Lock Washer
    Data Sheet
    • Body Diameter: 0.48 in.
    • Output: 10-bit analog, 2.6 kHz sampling rate
    • Overall Length: 1.26 in.
    • Shaft Diameter: 0.2498 in.
    • Voltage: 5 VDC

  • CAD Files

    am-2899 MA3 Absolute Encoder with Cable.STEP
    am-2899 MA3-X-250-N.STEP
