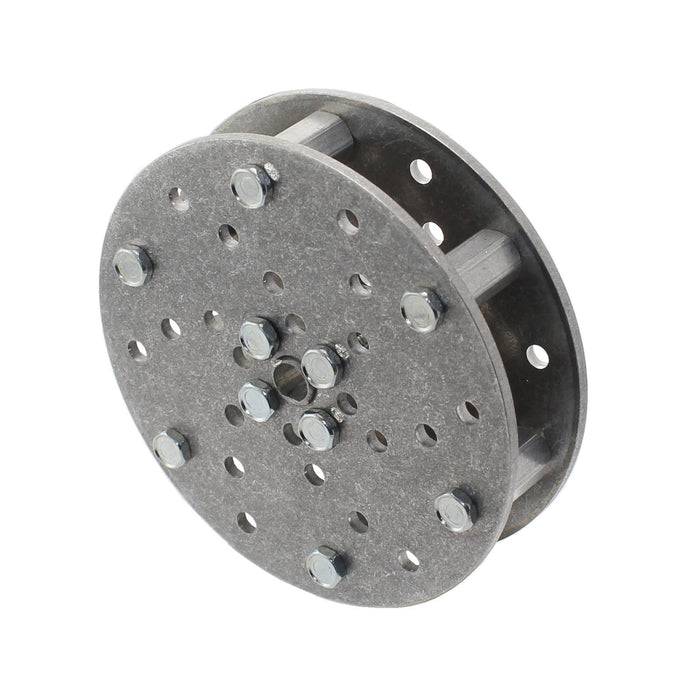

Large Standoff Winch

This unassembled kit can be used to make a winch drum that can be powered by a 6 mm D shaft. This means many FIRST Tech Challenge familiar components can be used to drive one, including a PicoBox or NeveRest.

The plates of this drum has the FTC 16 mm bolt circle on it so you can directly drive it with a NeveRest Sport gearbox. Winch drums are useful to coil up a string or cable that is being used to actuate a linear slide or elevator mechanism this version has multiple bolt circles to change the size of the drum to coil faster or slower depending on your needs.

Individual Components within Bundle:

• 1 - 6 mm D-Bore Double Boss XL HD Nub 2/ Set Screw (am-4314)
• 6 - 5/16 in. Hex Female-Female Standoff, 16 mm Long (am-3685-16)
• 2 - S3, 64 mm Pulley Plate (am-3686-64)
• 20 - 6-32 Hex Head Thread Lock Screws for Nubs (am-1439)

Weight: 0.203 Pounds
